Bi-Metal Link 95mm² Aluminium to 6mm² Copper Cabac

BRAND: CABAC
SKU: BLK95-6
$70.70 List price: $94.30
+ −
30 Days Return Electricians Unlock Trade Access

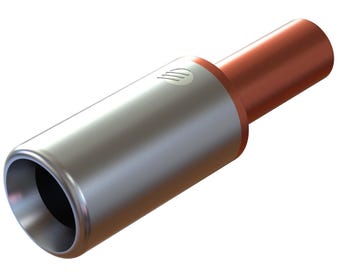

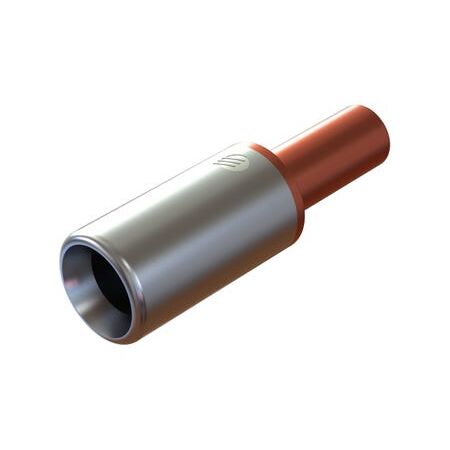

Cabac Bi-Metal Link features a 95mm² aluminium barrel and a 6mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.

Alternatively Known As: CABAC Bi-Metal Cable Link, Aluminium-to-Copper Reducing Link, Bi-Metal Crimp Link, BLK95/6

Technical Specifications
  • Aluminium Conductor Size: 95 mm²
  • Copper Conductor Size: 6 mm²
  • Construction: Aluminium and copper barrels joined by friction welding
  • Material: High-purity aluminium and copper
  • Connection Type: In-line crimp connection
  • Aluminium Barrel: Pre-filled with jointing compound to reduce oxide formation
  • Application: Linking stranded or sector aluminium conductors to stranded copper conductors
  • Aluminium Crimping: Two crimps using HT-95/120AL or equivalent tooling
  • Copper Crimping: One crimp using tooling suitable for 6 mm² copper conductors
  • Unit Quantity: 1 piece
  • Dimensions (H x L x W): 24mm x 110mm x 24mm
  • Weight: 0.14 kg
Key Features
  • Provides a direct aluminium-to-copper cable transition
  • Friction-welded joint forms a strong electrical and mechanical connection
  • Reduces the risk of galvanic corrosion and electrolysis between dissimilar metals
  • Aluminium barrel jointing compound helps limit oxide formation
  • Suitable for professional electrical distribution and cable-jointing applications
  • Designed for installation with compatible CABAC or equivalent crimping tools
Professional Installation Requirements
  • Installation must be performed by a licensed electrician using the manufacturer's specified crimping dies and procedures. Confirm conductor compatibility, stripping length, crimp sequence and electrical clearances before energising.
Applications
  • Joining 95 mm² aluminium cable to 6 mm² copper cable
  • Low-voltage electrical distribution connections
  • Switchboard and power-distribution cable transitions
  • Industrial and commercial cable jointing
  • Aluminium-to-copper conductor transitions where a crimped in-line connection is required
Standards & Compliance
  • AS/NZS 4325.1:1995 is the applicable Australian and New Zealand standard for crimp cable lugs and links; verify product-specific certification before installation.
Environmental Benefits
  • Aluminium and copper components are recyclable at end of service life
  • Friction-welded construction and corrosion-resistant design can extend connection service life and reduce replacement waste
  • Enables practical use of lightweight aluminium conductors with copper equipment or cabling
Warranty Information

CABAC's general commercial warranty provides repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use and applicable Australian Consumer Law rights. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns/))

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and exact product code before ordering.
