Bi-Metal Lug 120mm² 14mm Stud Cabac

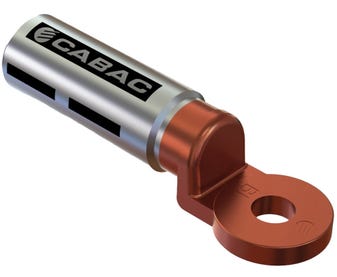

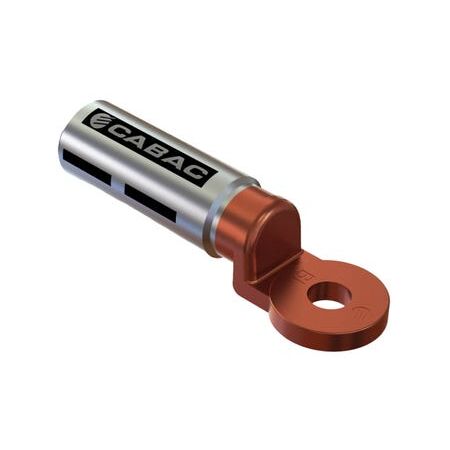

Cabac bi-metal lug features 120mm² size, 14mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Lug, Aluminium-to-Copper Cable Lug, BS120/14 Bi-Metal Stalk Lug
Technical Specifications
- Part Number: BS120/14
- Nominal Conductor Size: 120mm²
- Stalk/Stud Size: 14mm
- Barrel Internal Diameter: 15.5mm
- Conductive Materials: 99.6% aluminium sleeve and 99.9% copper palm
- Joining Method: Friction welding
- Jointing Compound: Pre-filled aluminium barrel compound
- Crimping: Two crimps using HT-95/120AL aluminium crimp die
- Hex Die Size: 17.3mm
- Operating Temperature: -40°C to 100°C
- Packaging Unit: 1 each
- Dimensions (H x L x W): 14mm x 110mm x 37mm
- Weight: 0.2 kg
Key Features
- Friction-welded aluminium barrel and copper palm provide a strong, electrically sound transition joint
- Designed for connecting 120mm² aluminium cable to copper conductors or equipment terminals
- Pre-filled jointing compound helps disrupt aluminium oxide layers and reduce contact resistance
- Chemically treated barrel helps reduce corrosion
- Compatible with standard CABAC/MSS Power tooling and aluminium hexagonal dies
- Crimp from the palm end to distribute jointing compound through the conductor strands
Professional Installation Requirements
- Installation and crimping should be performed by a suitably qualified electrical contractor using the manufacturer's specified tooling, die and crimp sequence. De-energise the circuit before installation and follow applicable electrical installation requirements.
Applications
- Aluminium power cable termination to copper busbars or terminals
- Low-voltage switchboards and electrical distribution equipment
- Commercial and industrial power cable installations
- Cable terminations where galvanic separation between aluminium conductor and copper connection point is required
Standards & Compliance
- AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium and copper components are recyclable materials
- Friction-welded construction and corrosion-resistant treatment can extend service life and reduce replacement waste
- Jointing compound and the bi-metal transition help support a durable, low-resistance electrical connection
Warranty Information
CABAC warranty terms provide a 12-month warranty from the date of purchase where no specific product warranty is stated, subject to correct installation, use within specification and exclusion of misuse or incorrect installation. Australian Consumer Law guarantees also apply. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor. ([cabac.com.au](https://www.cabac.com.au/p/electrical-power-connectivity/lugs-and-links/bi-metal/bs120-14))
