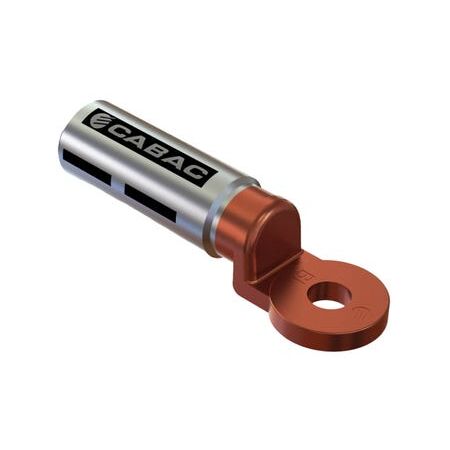

Bi-Metal Lug 150mm² 16mm Stud Cabac

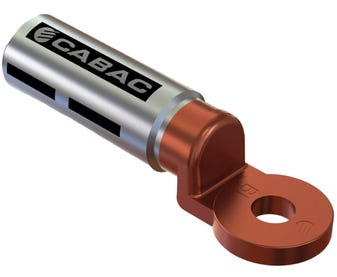

Cabac bi-metal lug features 150mm² size, 16mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-metal cable lug, aluminium-copper lug, Al/Cu compression lug, 150mm² bi-metal termination lug
Technical Specifications
- Nominal Cable Size: 150mm²
- Stud Hole Size: 16mm
- Material: Aluminium barrel with copper palm
- Aluminium Purity: High-purity electrical-grade aluminium
- Joining Method: Precision friction welding
- Barrel Treatment: Pre-filled with jointing compound
- Crimping: Two crimps from the palm end outwards
- Recommended Crimp Die: HT-150/185AL
- Hex Die Across Flats: 22mm
- Palm Style: Round
- Conformant Standard: AS/NZS 4325.1
- Dimensions (H x L x W): 37mm x 124mm x 35mm
- Weight: 0.22 kg
Key Features
- Designed for aluminium cable to copper equipment terminations
- Friction-welded aluminium and copper construction reduces galvanic corrosion risk
- Pre-filled jointing compound helps disrupt aluminium oxidation and improve conductivity
- Suitable for standard Australian hexagonal crimping tools and dies
- Round palm with 16mm stud hole
- Two-crimp installation using the specified aluminium crimp die
Professional Installation Requirements
- Installation should be performed by a licensed electrician using an approved hydraulic or mechanical crimping tool and the specified CABAC crimp die. Follow the manufacturer's crimping sequence and applicable electrical installation requirements.
Applications
- Terminating 150mm² aluminium cables onto copper busbars
- Switchboards and distribution boards
- Industrial electrical equipment connections
- Power distribution and infrastructure installations
- Aluminium conductor connections to copper terminals or equipment
Standards & Compliance
- AS/NZS 4325.1
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction and corrosion-resistant dissimilar-metal transition can extend service life and reduce replacement waste
- Jointing compound and oxidation control support reliable, long-term electrical performance
Warranty Information
CABAC's general warranty provides repair or replacement for defective goods for 12 months from the date of purchase where no specific product warranty is stated, subject to correct installation, use and the Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical wholesalers and distributors.
