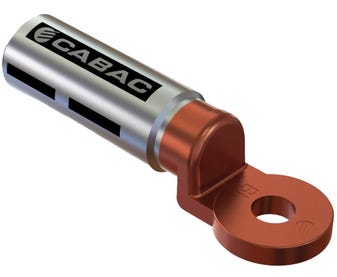

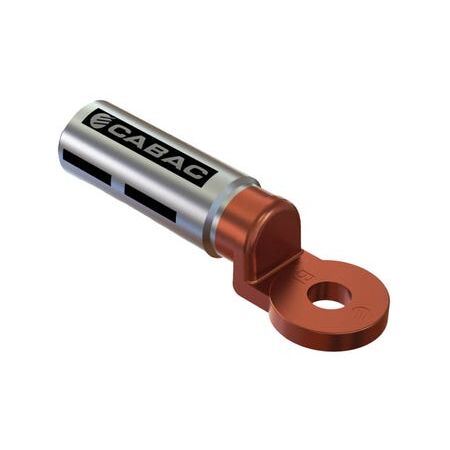

Bi-Metal Lug 16mm² 10mm Stud Cabac

BRAND: CABAC
SKU: BL16-10
$14.20 List price: $18.90
+ −
30 Days Return Electricians Unlock Trade Access
Cabac bi-metal lug features 16mm² size, 10mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.

Alternatively Known As: Bi-Metal Crimp Lug, Aluminium-Copper Cable Lug, Aluminium Cable Lug with Copper Palm, BL16-10

Technical Specifications
  • Nominal Cable Size: 16mm²
  • Stud Size: M10
  • Material: 99.6% pure aluminium barrel with 99.9% pure copper palm
  • Joining Method: Friction welding
  • Barrel Treatment: Chemically treated to reduce contact resistance and corrosion
  • Jointing Compound: Pre-filled barrel with sealed cap
  • Crimping: One crimp using HT-6/35AL die
  • A/F Hex Die: 9mm
  • Tensile Strength: 110MPa
  • Operating Temperature: -40°C to 100°C
  • Palm Style: Round
  • Dimensions (H x L x W): 20mm x 75mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Provides an aluminium-to-copper transition for aluminium cable terminations
  • Friction-welded aluminium barrel and copper palm form a strong electrically sound joint
  • Pre-filled jointing compound helps disrupt aluminium oxide layers and improve conductivity
  • Chemically treated barrel helps reduce contact resistance and corrosion
  • Designed for crimping with standard Australian hexagonal tooling
  • Suitable for connection to copper terminals or busbars
Professional Installation Requirements
  • Installation and crimping should be performed by a suitably qualified electrician in accordance with the cable manufacturer’s instructions, applicable wiring rules and CABAC crimping requirements. Confirm the correct crimp die, cable construction and terminal torque before energising.
Applications
  • Terminating 16mm² aluminium conductors to copper terminals
  • Switchboards and distribution boards
  • Power distribution equipment
  • Aluminium cable connections to copper busbars
  • Electrical and industrial wiring installations
Standards & Compliance
  • AS/NZS 4325.1
Environmental Benefits
  • Aluminium and copper components are recyclable at end of service life
  • Friction-welded construction and corrosion-reducing treatment can support extended service life and reduce replacement waste
  • Jointing compound and dissimilar-metal construction help reduce corrosion-related failures
Warranty Information

CABAC’s general warranty provides a one-year warranty from the date of supply or purchase, subject to correct installation and use. Warranty does not cover misuse, neglect or incorrect installation; Australian Consumer Law rights still apply.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock with the distributor.
