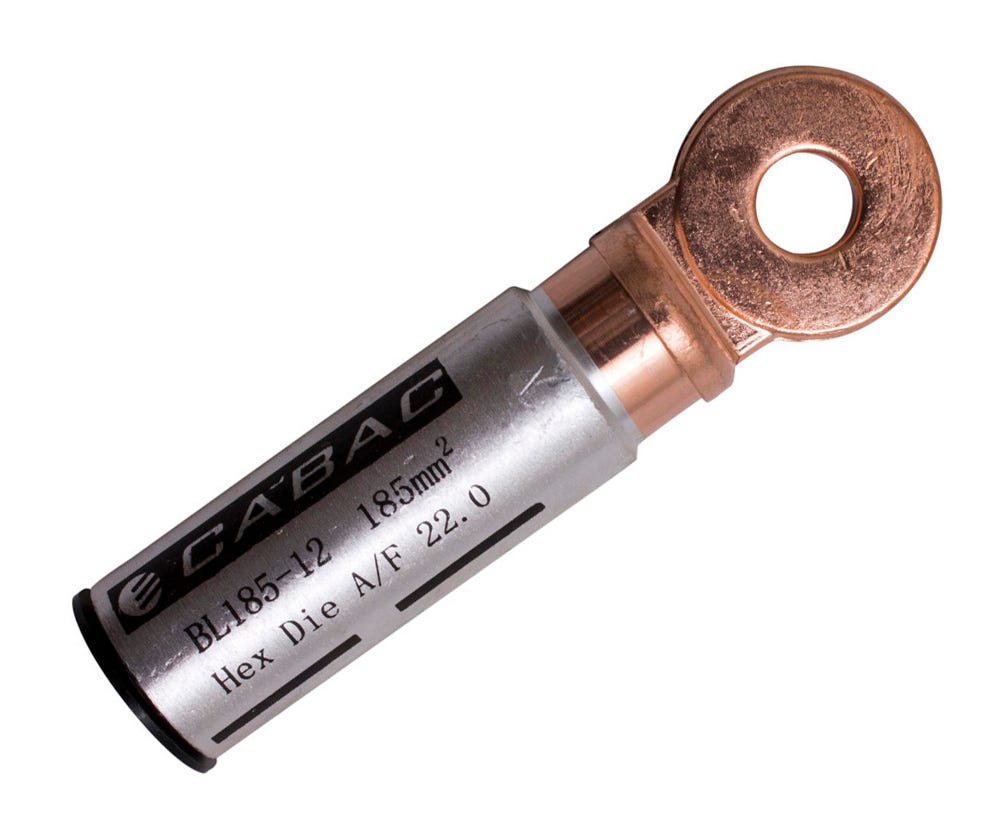

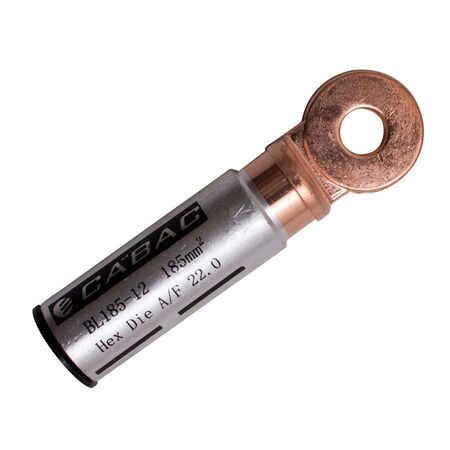

Bi-Metal Lug 185mm2-Std12mm | Aluminium & Copper | Friction Welded | @EA of 1 | by Cabac
The Bi-Metal Lug 185mm2-Std12mm is designed for reliable electrical power connectivity, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for industrial and commercial applications, this lug ensures strong, electrically sound joints through a friction welding process, making it suitable for both aluminium conductors and copper terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Resistivity: 2.6 micro-ohm cm (max) aluminium, 1.738 micro-ohm cm copper
- Conductivity: 61.8% IACS (min) aluminium, 99.7% IACS copper
- Operating Temperature Range: -40°C to 100°C
- Tooling: Interchangeable with CABAC, Utilux and Burndy tooling
- Dimensions (H x L x W): 15mm x 185mm x 40mm
- Weight: 0.15 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian aluminium hexagonal crimping dies to ensure proper crimping and electrical connection.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for use with aluminium conductors and copper terminals or busbars
- Industrial and commercial electrical installations requiring reliable conductor connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistant materials extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bi-Metal Lug 185mm2-Std12mm is available for immediate purchase, ideal for electrical power connectivity applications involving aluminium conductors.
