Bi-Metal Lug 240mm² 14mm Stud Cabac

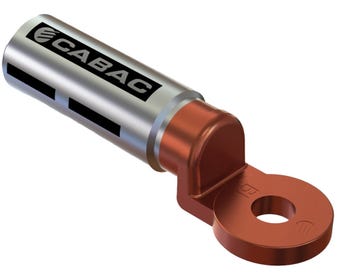

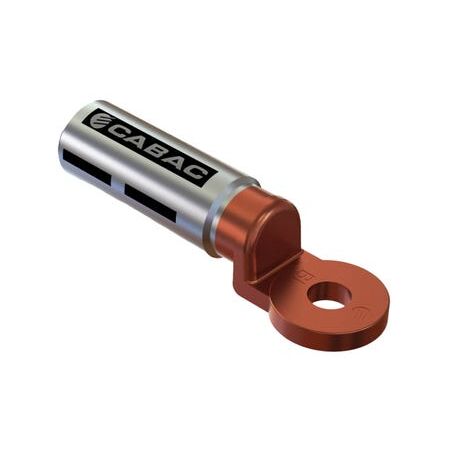

Cabac bi-metal lug features 240mm² size, 14mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-metal lug, aluminium-to-copper cable lug, friction-welded bi-metal cable terminal, aluminium cable lug with copper palm
Technical Specifications
- Nominal Conductor Size: 240 mm²
- Stud Hole: 14 mm as specified in the supplied product record; confirm against the exact CABAC part number before installation
- Material: Aluminium barrel with copper palm
- Aluminium Purity: 99.6%
- Copper Purity: 99.9% to 99.95%
- Joining Method: Precision friction welding
- Barrel Treatment: Pre-filled jointing compound to disrupt aluminium oxide and reduce contact resistance
- Operating Temperature: -40°C to +100°C
- Crimping: Two hex crimps using suitable CABAC or compatible aluminium-cable crimp dies
- Reference CABAC 240 mm² dimensions: approximately 135 mm overall length, 36 mm palm width, 7.5 mm palm thickness and 38 mm barrel diameter; published CABAC variants include 10, 12 and 16 mm stud sizes. ([cabac.com.au](https://www.cabac.com.au/amfile/file/download/file/134683/product/135430/?utm_source=openai))
- Dimensions (H x L x W): 38mm x 135mm x 36mm
- Weight: 0.12 kg
Key Features
- Provides a transition between aluminium conductors and copper terminals or busbars
- Friction-welded aluminium-to-copper joint helps reduce galvanic corrosion risk
- Aluminium barrel contains jointing compound to improve contact through the oxide layer
- High-purity conductive materials for reliable electrical and mechanical performance
- Suitable for standard Australian hexagonal crimping equipment
- Designed for power distribution, switchgear and electrical termination work
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson. Select the crimp die and termination method for the actual cable construction, follow CABAC instructions, and install in accordance with AS/NZS 3000 and applicable manufacturer requirements.
Applications
- Terminating 240 mm² aluminium power cable to copper busbars
- Switchboards and switchgear connections
- Power distribution equipment
- Industrial electrical installations
- Aluminium cable connections to copper equipment terminals
Standards & Compliance
- AS/NZS 4325.1 for compression connectors and cable lugs; CABAC identifies its bi-metal lug range as conforming to this standard. ([cabac.com.au](https://www.cabac.com.au/amfile/file/download/file/134683/product/135430/?utm_source=openai))
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction and corrosion-resistant design can extend termination service life and reduce replacement waste
- Jointing compound and dissimilar-metal construction help maintain low contact resistance, supporting efficient electrical connections
Warranty Information
CABAC terms provide a one-year repair-or-replacement obligation for defective goods from the date of supply, subject to applicable terms and exclusions, including incorrect installation or use contrary to specifications. Statutory Australian Consumer Law guarantees also apply where relevant. ([cabac.com.au](https://www.cabac.com.au/terms-and-conditions))
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and the exact 14 mm-stud part number before ordering.
