Bi-Metal Lug 240mm² 16mm Stud Cabac

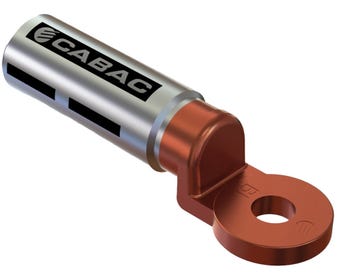

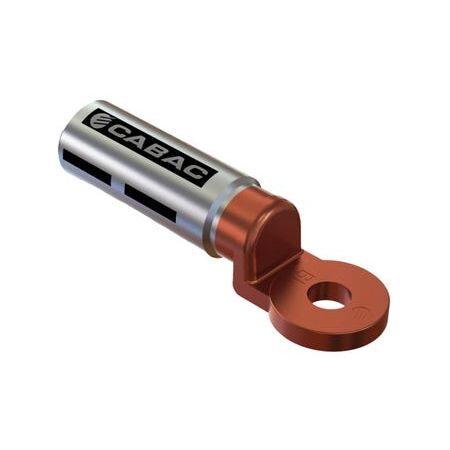

Cabac bi-metal lug features 240mm² size, 16mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Lug, Aluminium-to-Copper Lug, CABAC BL240-16
Technical Specifications
- Part Number: BL240-16
- Nominal Conductor Size: 240 mm² aluminium
- Stud Size: M16
- Internal Barrel Diameter: 22 mm
- Overall Length: 135 mm
- Palm Width: 36 mm
- Palm Thickness: 7.5 mm
- Copper Palm Length: 38 mm
- Aluminium Barrel Length: 60 mm
- Material: 99.6% aluminium barrel and 99.9% copper palm
- Jointing Method: Precision friction welding
- Jointing Compound: Pre-filled aluminium barrel
- Crimping: Two crimps using HT-240/300AL die
- Palm Style: Round
- Operating Temperature: -40°C to 100°C
- Dimensions (H x L x W): 38mm x 135mm x 36mm
- Weight: 0.2 kg
Key Features
- Designed for 240 mm² stranded sector and circular stranded aluminium conductors
- Provides an aluminium cable to copper stud or busbar termination
- Friction-welded aluminium-to-copper joint helps prevent electrolytic corrosion
- Pre-filled jointing compound disrupts aluminium oxidation and supports conductivity
- Compatible with standard Australian hexagonal crimping tools and dies
- Manufactured to Australian dimensions
- Individually packed for protection before installation
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor using the specified HT-240/300AL crimp die and approved crimping procedure. The lug must be correctly matched to the conductor and installed in accordance with the manufacturer's instructions and applicable wiring rules.
Applications
- Aluminium cable termination to copper equipment terminals
- Electrical distribution boards and switchboards
- Power distribution and utility infrastructure
- Industrial electrical installations
- Connections to copper busbars, transformer terminals and switchgear
Standards & Compliance
- AS/NZS 4325.1
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction supports a durable connection and may reduce replacement waste
- Jointing compound and dissimilar-metal construction help reduce corrosion-related premature failures
- Long service life can reduce material consumption associated with repeat terminations
Warranty Information
CABAC products are generally covered by a 12-month warranty from the date of purchase unless a different product-specific warranty applies. Warranty excludes misuse, neglect and incorrect installation; Australian Consumer Law rights continue to apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time before ordering.
