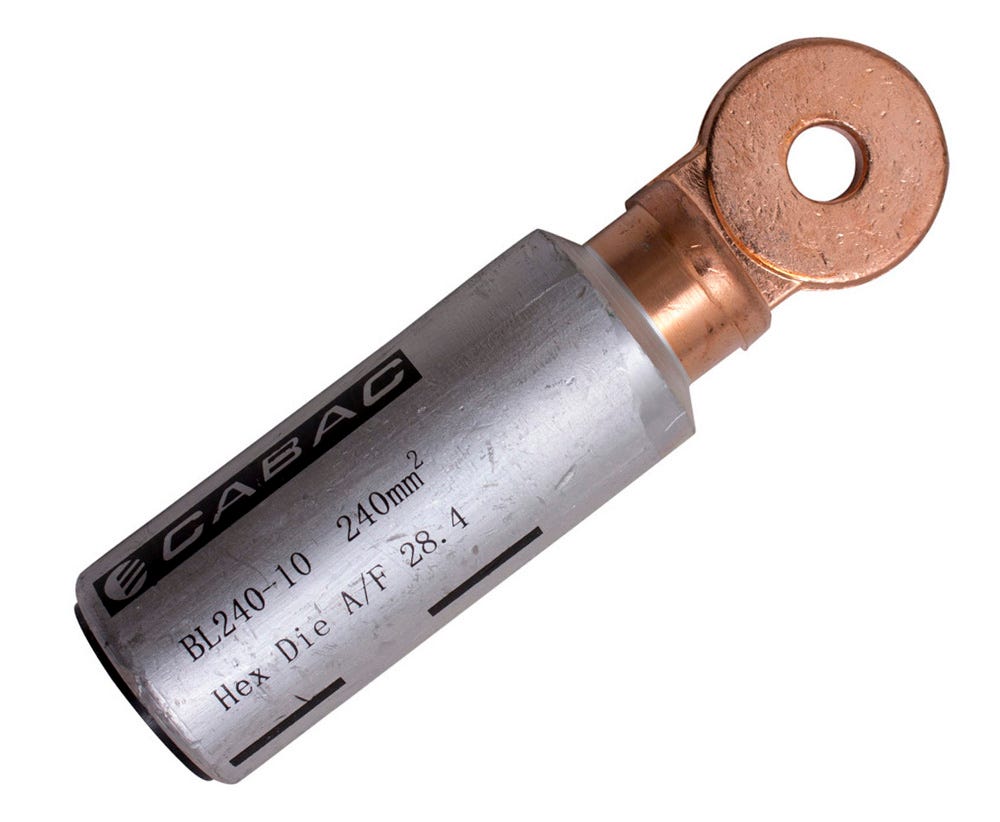

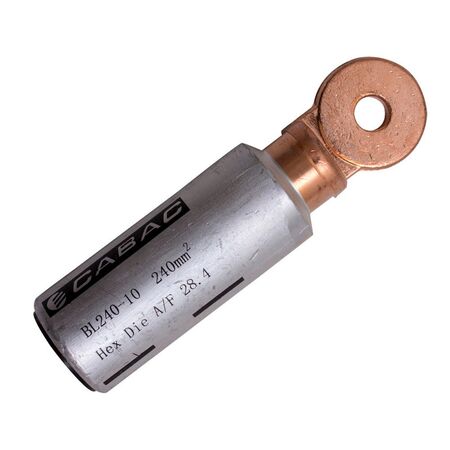

Bi-Metal Lug 240mm2-Std10mm | Friction Welded | Aluminium & Copper | @EA of 1 | by Cabac
The Bi-Metal Lug 240mm2-Std10mm is designed for reliable electrical power connectivity, featuring a friction welded joint for a strong and electrically sound connection. Ideal for use with both aluminium conductors and copper terminals, this lug ensures optimal performance in industrial and commercial electrical installations. With a tensile strength of 110 MPa and a temperature range of -40°C to 100°C, it meets AS/NZS 4325 standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Tooling is interchangeable between CABAC, Utilux and Burndy
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.15 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian aluminium hexagonal crimping dies to ensure proper crimping and electrical connection.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for use with aluminium conductors and copper terminals or busbars
- Industrial and commercial electrical installations requiring reliable conductor connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Friction welding process reduces the need for additional materials and enhances product longevity
- Chemically treated barrel reduces corrosion, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for detailed warranty terms.
Available Now
The Cabac Bi-Metal Lug 240mm2-Std10mm is available for immediate purchase, ideal for electrical power connectivity applications involving aluminium conductors.
