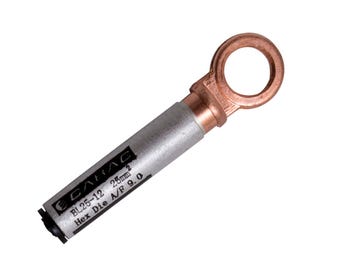

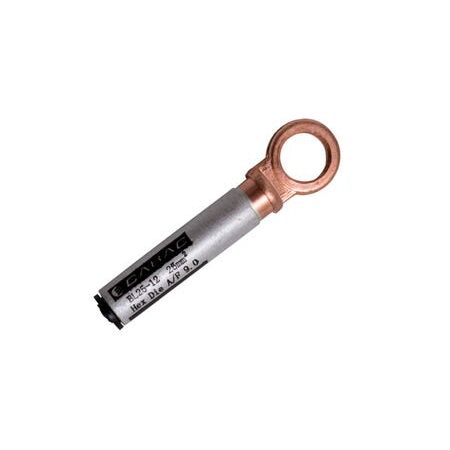

Bi-Metal Lug 25mm2 12mm Stud | Friction Welded Joint | Corrosion Resistant | Durable Design by Cabac
The Cabac Bi-Metal Lug 25mm2 12mm Stud is designed for stranded aluminium conductors, featuring a friction welded aluminium and copper joint for strong electrical performance and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 25mm2 12mm Stud
Brand: Cabac
SKU: BL25-12
Alternatively Known As: Bi-Metal Aluminium Copper Lug, Aluminium Copper Cable Lug, Friction Welded Bi-Metal Lug
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Torque Recommendations: 12mm thread diameter requires 77 Nm torque
- Dimensions (H x L x W): 12mm x 60mm x 25mm
- Weight: 0.05 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
- Barrel chemically treated to reduce contact resistance and corrosion
- Tooling is interchangeable between CABAC, Utilux and Burndy
Professional Installation Requirements
- Should be crimped using standard Australian tooling with aluminium hexagonal dies by a qualified electrician or technician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for aluminium conductor and copper terminals or busbar connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Lug 25mm2 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications involving aluminium and copper conductors.
