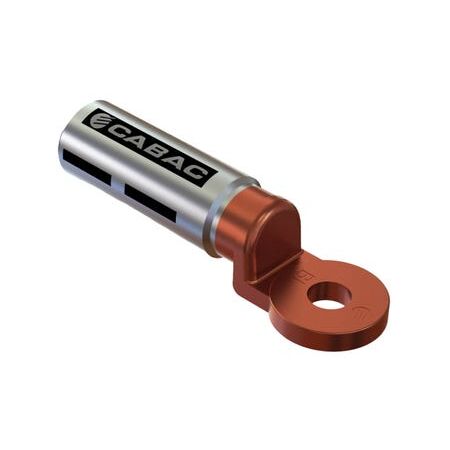

Bi-Metal Lug 300mm² 16mm Stud Cabac

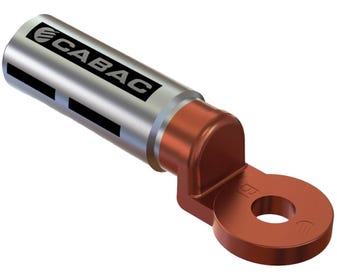

Cabac bi-metal lug features 300mm² size, 16mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Lug, Aluminium-Copper Lug, Bi-Metal Crimp Lug, Circuit Breaker Lug
Technical Specifications
- Part Number: BL300CB-16
- Conductor Size: 300mm²
- Stud Size: 16mm
- Stud Hole Diameter: 17mm nominal
- Barrel Internal Diameter: 23.5mm
- Material: Aluminium barrel with copper palm
- Manufacturing Process: Friction welding
- Crimp Die: HT-240/300AL
- Number of Crimps: 2
- Crimping Positions: AF markings on barrel
- Operating Application: Aluminium conductor to copper circuit breaker terminal
- Packaging Unit: 1 each
- Dimensions (H x L x W): 40mm x 150mm x 20mm
- Weight: 0.3 kg
Key Features
- Friction-welded aluminium-to-copper joint for reliable electrical and mechanical performance
- Suitable for terminating 300mm² aluminium conductors to copper circuit breaker terminals
- Aluminium barrel is supplied with jointing compound to reduce oxide formation
- Sealed barrel helps protect the crimping compound and conductor interface
- Crimp from the palm end to force compound into the conductor strands
- Crimping positions are clearly marked on the barrel
- Designed for narrow circuit breaker termination tunnels
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the specified HT-240/300AL crimp die and two correctly positioned crimps. Follow CABAC installation instructions and applicable electrical installation requirements.
Applications
- Industrial and commercial switchboards
- Circuit breaker and switchgear terminations
- Power distribution equipment
- Aluminium cable to copper terminal connections
- Electrical panel and low-voltage power connectivity
Standards & Compliance
- AS/NZS 4325.1 applicable to compression connectors and cable lugs
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Durable friction-welded construction can reduce premature replacement and material waste
- Reliable low-resistance termination can support efficient electrical power distribution
Warranty Information
CABAC provides a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use, installation and the manufacturer's warranty conditions. Australian Consumer Law rights are not excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
