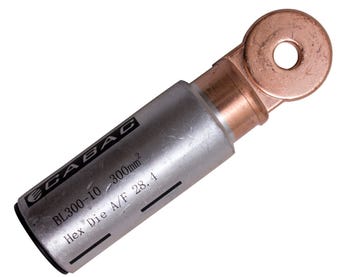

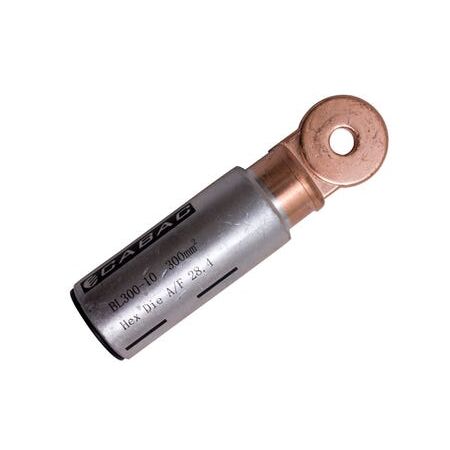

Bi-Metal Lug 300mm² | Friction Welded Joint | Aluminium & Copper Compatibility | 10mm Stud by Cabac
Cabac Bi-Metal Lug 300mm2-Stud10mm designed for stranded sector and circular stranded aluminium conductors, featuring a friction welded joint for strong electrical connection and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 300mm2-Stud10mm
Brand: Cabac
SKU: BL300-10
Alternatively Known As: Bi-Metal Cable Lug, Aluminium Copper Lug, Friction Welded Lug, Electrical Cable Connector
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Tooling is interchangeable between CABAC, Utilux and Burndy
- Electrical Resistivity: 2.6 micro-ohm cm (max) aluminium, 1.738 micro-ohm cm copper
- Conductivity: 61.8% IACS (min) aluminium, 99.7% IACS copper
- Operating Temperature: -40°C to 100°C
- Recommended torque for 10mm stud: 44 Nm
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for aluminium conductor and copper terminals or busbar connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical resistance and energy loss in connections
- Corrosion resistant materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bi-Metal Lug 300mm2-Stud10mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
