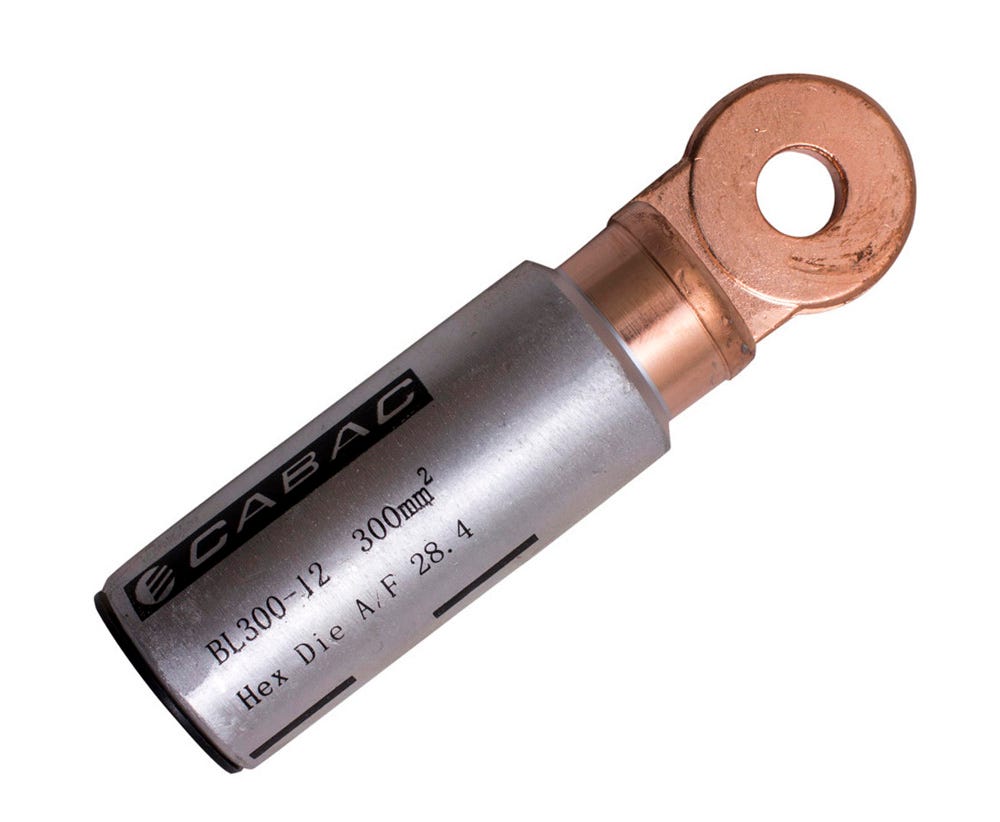

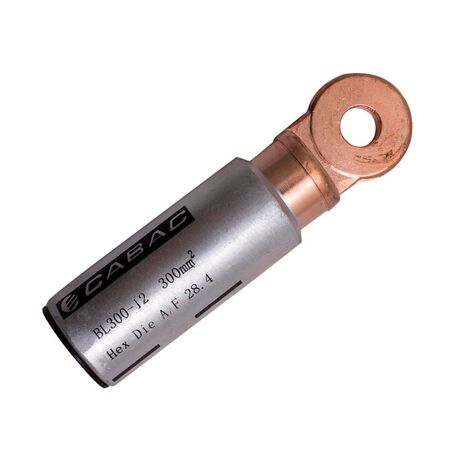

Bi-Metal Lug 300mm2-Std12mm | Friction Welded | Aluminium & Copper | @Each of 1 | by Cabac
The Bi-Metal Lug 300mm2-Std12mm is designed for reliable electrical power connectivity, featuring a friction welded joint for a strong and electrically sound connection. Ideal for use with stranded aluminium conductors and copper terminals, this lug ensures optimal performance in industrial and commercial wiring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Tooling: Interchangeable with CABAC, Utilux, and Burndy tooling
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian aluminium hexagonal crimping dies to ensure proper crimping and electrical connection.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for use with copper terminals or busbars in electrical installations
- Ideal for industrial and commercial electrical wiring and power distribution
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical lugs and connectors
Environmental Benefits
- Friction welding process reduces the need for additional materials and enhances durability, minimizing waste
- High-quality materials ensure long service life, reducing replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty terms.
Available Now
The Cabac Bi-Metal Lug 300mm2-Std12mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper connections.
