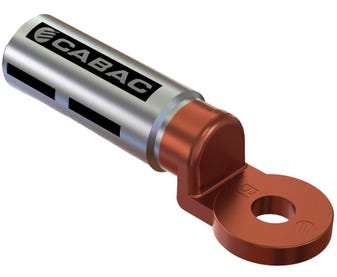

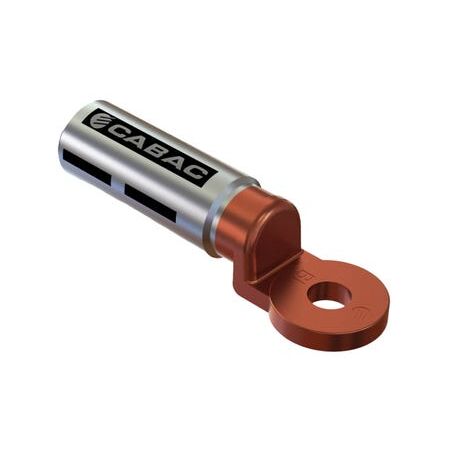

Bi-Metal Lug 35mm² 16mm Stud Cabac
Cabac bi-metal lug features 35mm² size, 16mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-metal lug, aluminium-to-copper cable lug, aluminium barrel copper palm lug, compression cable lug
Technical Specifications
- Part Number: BL35-16
- Nominal Conductor Size: 35 mm²
- Stud Size: M16
- Internal Diameter: 8.5 mm
- Material: Aluminium barrel with copper palm
- Aluminium Purity: 99.6%
- Copper Purity: 99.9%
- Joining Method: Precision friction welding
- Jointing Compound: Pre-filled aluminium barrel
- Palm Style: Round
- A/F Hex Die: 9 mm
- Number of Crimps: 1
- Crimp Die Type: CABAC HT-6/35AL
- Operating Application: Aluminium cable to copper busbar or terminal
- Dimensions (H x L x W): 22mm x 75mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides a transition from aluminium cable to copper terminals
- Precision friction-welded aluminium and copper construction
- Pre-filled barrel jointing compound helps limit oxidation and improve conductivity
- Suitable for stranded aluminium conductors
- Designed for standard Australian hexagonal crimping tools and dies
- Round palm with M16 stud hole
- Manufactured to approximate Australian electrical dimensions
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrical contractor using the specified CABAC crimp die and following the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Terminating 35 mm² aluminium cable to copper busbars
- Low-voltage switchboards and distribution boards
- Power distribution equipment
- Electrical connection systems using aluminium conductors and copper terminals
Standards & Compliance
- AS/NZS 4325.1
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- The bi-metal construction supports durable aluminium-to-copper connections and can reduce premature replacement waste
- Jointing compound and corrosion-resistant construction support extended product service life
Warranty Information
CABAC provides a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct installation and use. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock with the distributor.
