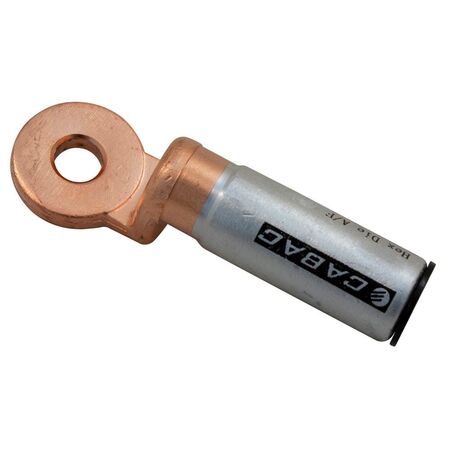

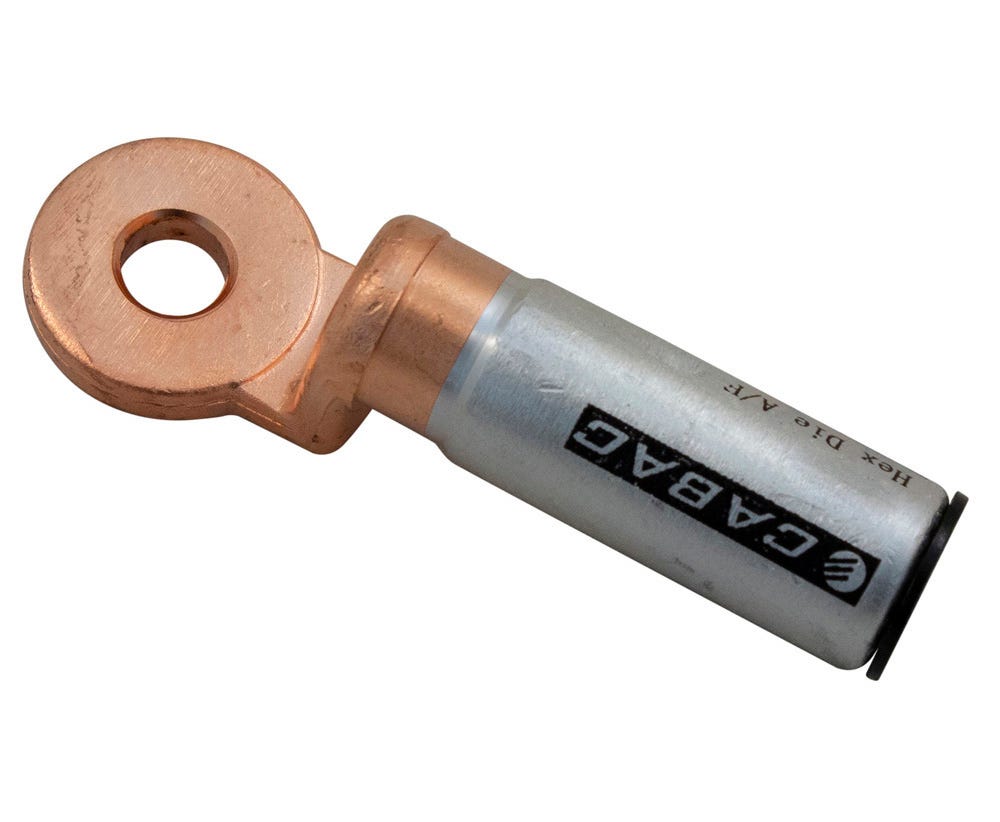

Bi-Metal Lug 35mm2-Stud10mm | Aluminium & Copper | Friction Welded | @Each of 1 | by Cabac
The Bi-Metal Lug 35mm2-Stud10mm is designed for reliable electrical power connectivity, featuring a strong aluminium sleeve and copper palm for optimal conductivity. Ideal for industrial and commercial applications, this lug is manufactured using a friction welding process, ensuring a robust and electrically sound joint. Perfect for qualified electricians, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Resistivity: 2.6 micro-ohm cm (max) aluminium, 1.738 micro-ohm cm copper
- Conductivity: 61.8% IACS (min) aluminium, 99.7% IACS copper
- Operating Temperature: -40°C to 100°C
- Tooling is interchangeable between CABAC, Utilux and Burndy
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian crimping tools for aluminium hexagonal dies to ensure proper connection and safety.
Applications
- Electrical power connectivity for aluminium conductors
- Suitable for use with copper terminals or busbars
- Ideal for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical resistance and energy loss, improving energy efficiency
- Corrosion resistant materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Lug 35mm2-Stud10mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper connections.
