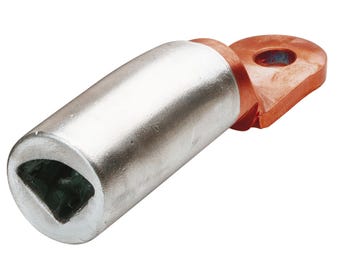

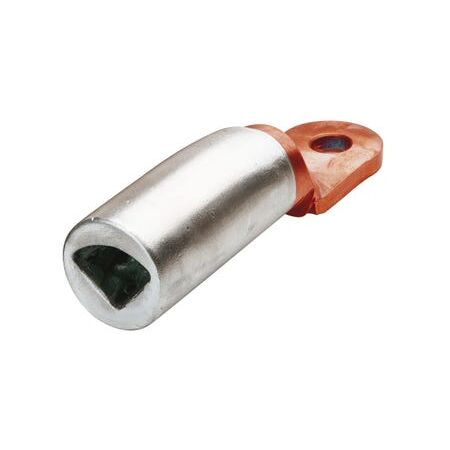

Bi-Metal Lug 4 Core 240mm² | Aluminium Sleeve & Copper Palm | Friction Welded Joint by Cabac

BRAND: CABAC
SKU: BLSC240/4-12
$49.30 List price: $59.70
+ −
30 Days Return Delivery Options
Cabac Bi-Metal Lug 4 Core Sect 240Mm2 is designed for terminating and joining four core solid sector aluminium conductors with a strong friction welded joint, suitable for URD installations.

Product Name/Title: Bi-Metal Lug 4 Core Sect 240Mm2

Brand: Cabac

SKU: BLSC240/4-12

Alternatively Known As: Bi-Metal Sector Lug, 4 Core Aluminium Lug, Bi-Metal Round Barrel Lug, Aluminium Sector Conductor Lug

Technical Specifications
  • Solid Sector Conductor: 240 mm², 4 Core
  • Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
  • Tensile Strength: 110 MPa
  • Ductile Rating: 28%
  • Final Metal State: Fully Annealed including joint
  • Joining Method: Friction Welding (IEC standard)
  • Cable Sector Shape: BS3988-1970
  • Operating Temperature: -40 to 125 °C
  • Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
  • Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
  • Dimensions (H x L x W): 20mm x 185mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Round (circular) external dimension on the aluminium end with a sector shaped internal dimension
  • Designed for solid four core aluminium conductors
  • Compatible with conventional hex crimp dies due to barrel format
  • Manufactured using friction welding process producing a strong electrically sound joint
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate hex crimp dies to ensure secure and compliant connections.
Applications
  • Used to joint or terminate four core solid sector aluminium conductors in URD installations
  • Joining four core aluminium sector to conventional stranded copper conductors
Standards & Compliance
  • AS/NZS 4325 Part 1
Environmental Benefits
  • Durable friction welded joint reduces need for replacements, minimizing waste
  • High conductivity materials improve energy efficiency in electrical connections
Warranty Information

Standard manufacturer warranty applies; please contact supplier for details.

Available Now

The Cabac Bi-Metal Lug 4 Core Sect 240Mm2 is available for immediate purchase, ideal for electrical power connectivity applications involving aluminium sector conductors.
