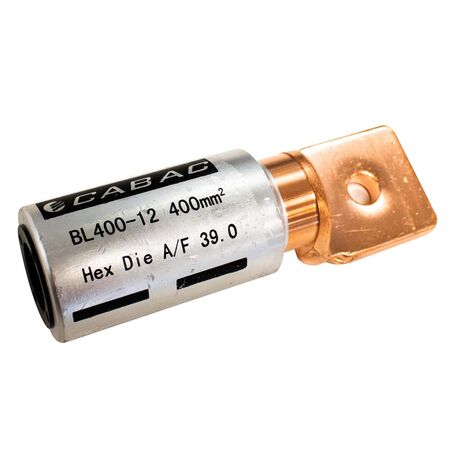

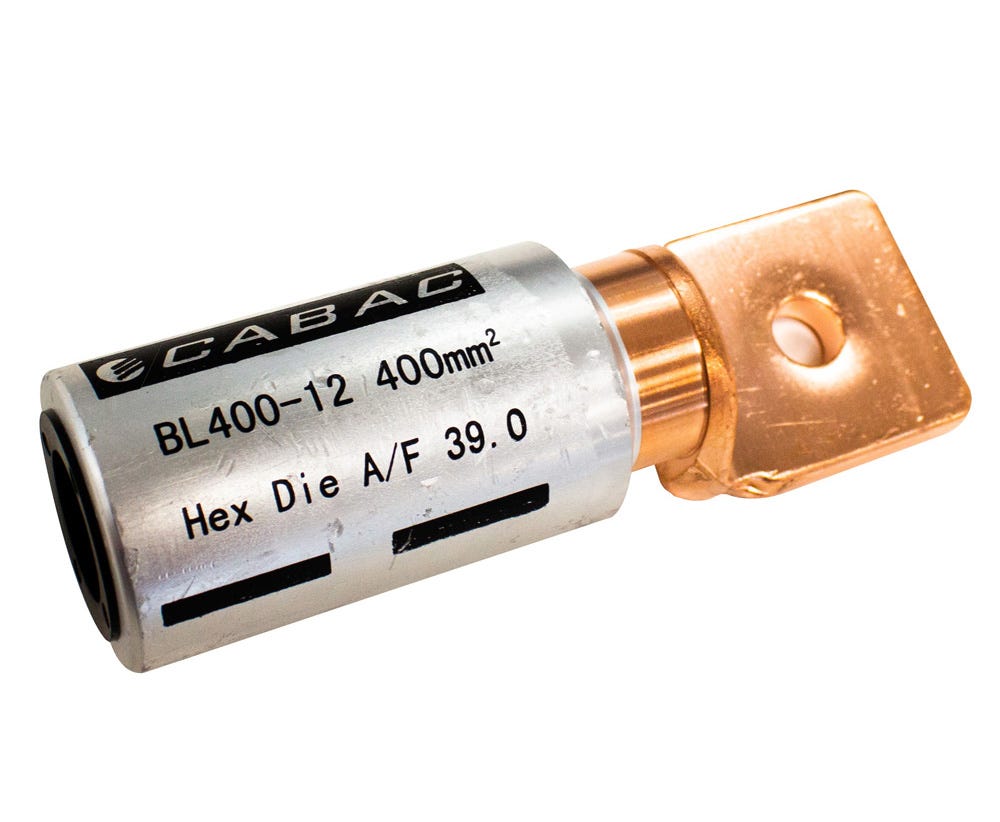

Bi-Metal Lug 400mm² | 12mm Stud Size | Friction Welded | Durable Crimping | @Each of 1 | by Cabac
The Bi-Metal Lug 400mm² is designed for reliable electrical power connectivity between aluminium and copper conductors. Featuring a 12mm stud size and manufactured using a friction welding process, this lug ensures a strong, electrically sound joint. Ideal for industrial, commercial, and residential installations, it offers marked crimping positions for accurate installation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 400mm²
- Stud Size: 12mm
- Material: Bi-metal (Aluminium and Copper)
- Manufacturing Process: Friction welding
- Crimping: Compound sealed in barrel with cap
- Crimping Positions: Clearly marked AF on barrel
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Manufactured using friction welding process for a strong, electrically sound joint
- Compatible with aluminium conductors and copper terminals or busbars
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel sealed with cap for durability
- Clearly marked crimping positions (AF) on barrel for accurate installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical power connectivity for aluminium and copper conductors
- Suitable for use in industrial, commercial, and residential electrical installations
- Connection to busbars and terminals requiring strong, reliable joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss and improves system efficiency
Warranty Information
Cabac provides a standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Cabac Bi-Metal Lug 400mm2-Std12mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
