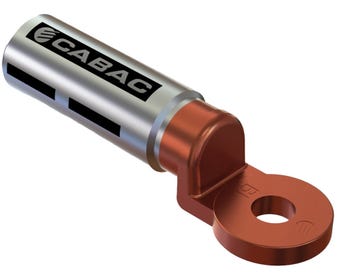

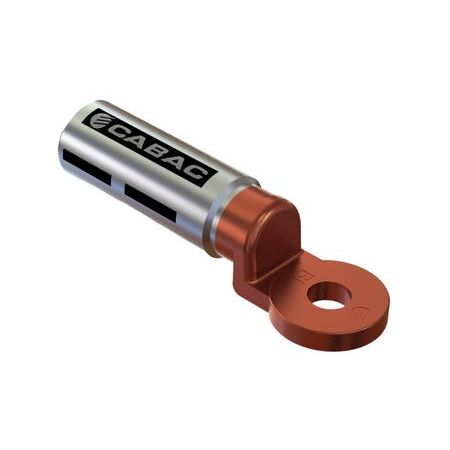

Bi-Metal Lug 50mm² 8mm Stud Cabac
Cabac bi-metal lug features 50mm² size, 8mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium-to-Copper Bi-Metal Cable Lug, Bi-Metal Compression Lug, Aluminium Cable Lug with Copper Palm
Technical Specifications
- Part Number: BL50-8
- Nominal Conductor Size: 50mm²
- Stud Size: M8
- Barrel Inside Diameter: 9.5mm
- Aluminium Barrel Purity: 99.6%
- Copper Palm Purity: 99.9%
- Joining Method: Precision friction welding
- Crimping: 1 crimp from the palm end
- Recommended Crimp Die: HT-50/70AL
- A/F Hex Die: 13.2mm
- Palm Style: Round
- Operating Temperature: -40°C to 100°C
- Jointing Compound: Pre-filled barrel with sealed cap
- Torque Recommendation for 8mm Stud: 22Nm
- Dimensions (H x L x W): 13.5mm x 75mm x 32mm
- Weight: 0.1 kg
Key Features
- Designed for terminating aluminium conductors to copper terminals or busbars
- Friction-welded aluminium barrel and copper palm provide a mechanically strong, electrically sound transition
- Chemically treated barrel reduces contact resistance and corrosion
- Pre-filled jointing compound helps disrupt aluminium oxide layers and improve conductivity
- Clearly marked crimping positions and compatible with standard Australian aluminium hexagonal crimp dies
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor using the specified HT-50/70AL crimp die and manufacturer-recommended crimping sequence. Ensure the conductor size, stud size and installation torque are correct before energising the connection.
Applications
- Aluminium power cable termination to copper busbars
- Switchboards, distribution boards and electrical panels
- Power distribution and industrial electrical installations
- Aluminium-to-copper transitions where galvanic corrosion control is required
Standards & Compliance
- AS/NZS 4325.1
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction and corrosion-resistant treatment can extend termination service life and reduce replacement waste
- Jointing compound and dissimilar-metal construction support reliable conductivity, helping reduce connection losses caused by oxidation
Warranty Information
Subject to CABAC's published warranty and returns terms. Warranty coverage is conditional on correct installation and use in accordance with manufacturer instructions; misuse, neglect and incorrect installation are excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
