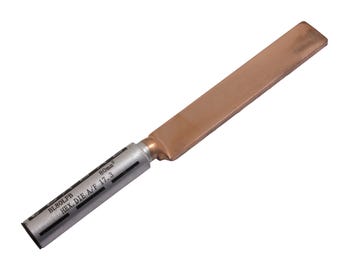

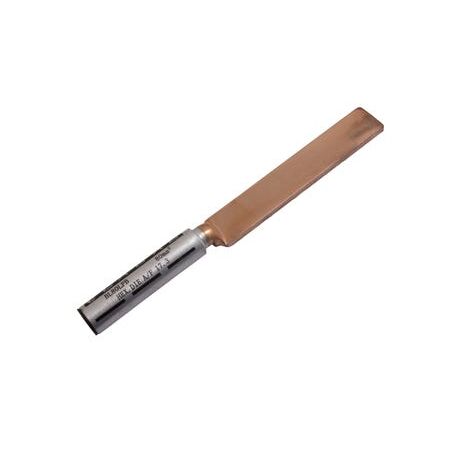

Bi-Metal Lug 80mm² | Aluminium & Copper | Friction Welded & Corrosion Resistant by Cabac
The Cabac Bi-Metal Lug 80mm2-LPB is designed for CCT conductors, featuring a friction welded aluminium and copper construction for strong, corrosion-resistant electrical connections in power installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 80mm2-LPB
Brand: Cabac
SKU: BL80LPB
Alternatively Known As: Bi-Metal Long Palm Long Barrel Lug, Bi-Metal Cable Lug 80mm2, Aluminium Copper Lug for CCT Cable, Friction Welded Electrical Lug
Technical Specifications
- Nominal Conductor Size: 80mm²
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Operating Temperature Range: -40 to 100°C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Barrel chemically treated to reduce contact resistance and corrosion
- Filled with jointing compound to break oxide layers on aluminium
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Compound reduces contact resistance and inhibits corrosion
- Crimp from palm end to force compound into conductor strands
- Suitable for CCT cable installations
- Long barrel length with additional crimping position
- Options for 1 to 3 holes in lug palm with variable palm length
- Made to Australian dimensions and compatible with standard Australian tooling
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for CCT (Covered Conductor Thick) aluminium stranded overhead conductors
- Suitable for use in electrical installations requiring strong, corrosion-resistant lugs
- Ideal for utility and industrial electrical cable terminations
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Friction welding process reduces need for additional materials and energy compared to traditional joining methods
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Designed for CCT conductors which minimize vegetation clearance and reduce environmental impact
Warranty Information
Warranty details available upon request from manufacturer; typically covers manufacturing defects.
Available Now
The Cabac Bi-Metal Lug 80mm2-LPB is available for immediate purchase, ideal for electrical power connectivity applications involving CCT conductors.
