Bi-Metal Lug 95mm² 16mm Stud Cabac

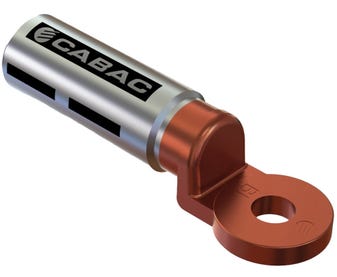

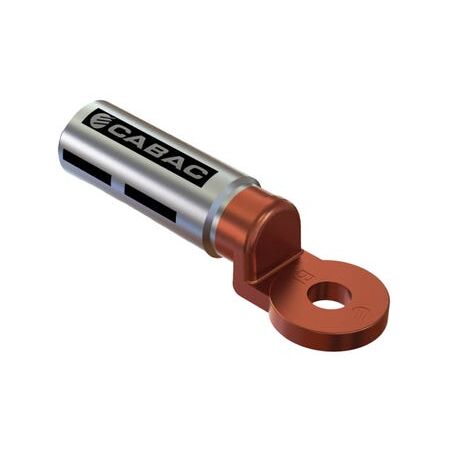

Cabac bi-metal lug features 95mm² size, 16mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Lug, Aluminium-to-Copper Lug, ABC Bi-Metal Lug, Pre-Insulated Bi-Metal Lug
Technical Specifications
- Nominal Conductor Size: 95mm² aluminium cable
- Stud Size: 16mm
- Material: Aluminium barrel with copper palm
- Jointing Method: Friction welded bi-metal construction
- Insulation: Pre-insulated black housing
- Colour Coding: Grey
- Crimping: 4 crimps using AF21.5mm die
- Recommended Tooling: HT-95/150ABC or suitable 13-tonne hydraulic crimping tool
- Jointing Compound: Pre-filled barrel for improved electrical contact and oxidation control
- Conformant Standards: AS/NZS 4325.1, BS 4579 and IEC
- Water Dielectric Strength: 6kV under water
- Dimensions (H x L x W): 32.5mm x 115mm x 30mm
- Weight: 0.18 kg
Key Features
- Provides an aluminium-to-copper transition for electrical terminations
- Pre-insulated design avoids the need for additional heatshrink insulation
- Friction-welded aluminium barrel and copper palm help reduce galvanic corrosion risk
- Pre-filled jointing compound helps disrupt aluminium oxide layers and improve conductivity
- Moulded stripping length, die size, crimp sequence and crimp count markings
- Suitable for aerial bundled cable terminations to transformers, switchgear and pole-top equipment
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical contractor using the specified hydraulic crimping tool, die and manufacturer instructions. De-energise and isolate the circuit before installation.
Applications
- Aerial bundled cable terminations
- Connecting 95mm² aluminium conductors to copper terminals
- Transformer and switchgear connections
- Pole-top electrical distribution equipment
- Low-voltage power distribution installations
Standards & Compliance
- AS/NZS 4325.1
- BS 4579
- IEC requirements stated by the manufacturer
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction supports a durable connection and can reduce replacement waste
- Jointing compound and corrosion-resistant bi-metal construction may extend termination service life
Warranty Information
CABAC provides a 12-month warranty from the date of purchase where no product-specific warranty is stated. Warranty excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
