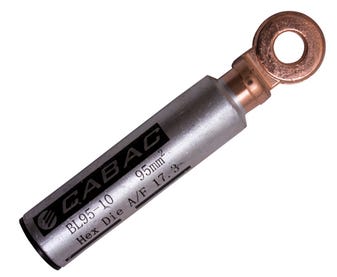

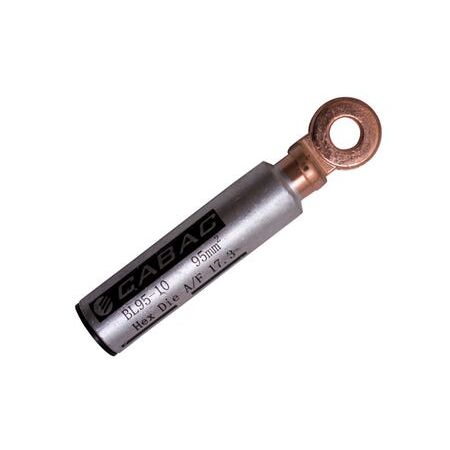

Bi-Metal Lug 95mm2-Stud10mm | Friction Welded Joint | Aluminium & Copper Compatibility | Corrosion Resistant by Cabac
Cabac Bi-Metal Lug 95mm2-Stud10mm designed for stranded sector and circular stranded aluminium conductors, featuring a friction welded joint for strong electrical connection and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 95mm2-Stud10mm
Brand: Cabac
SKU: BL95-10
Alternatively Known As: Bi-Metal Cable Lug, Aluminium Copper Lug, Friction Welded Lug, Electrical Cable Connector
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature: -40°C to 100°C
- Tooling is interchangeable between CABAC, Utilux and Burndy
- Recommended torque per AS/NZS standards for hardware
- Dimensions (H x L x W): 10mm x 95mm x 30mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Should be crimped using standard Australian tooling with aluminium hexagonal dies by a qualified electrician or technician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for aluminium conductor and copper terminals or busbar connections
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Reduces electrical resistance and energy loss in connections
- Corrosion resistant materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Lug 95mm2-Stud10mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
