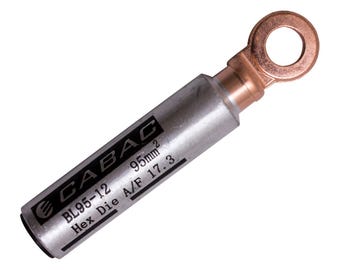

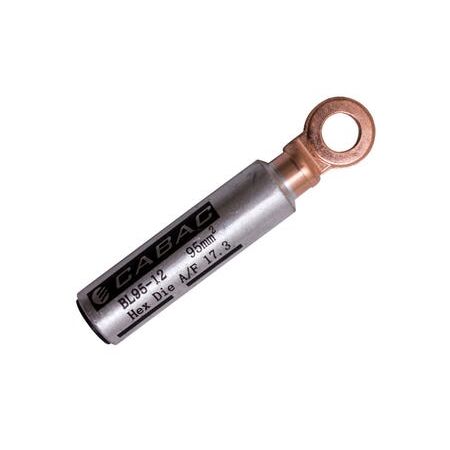

Bi-Metal Lug 95mm2-Stud12mm | Friction Welded Joint | Aluminium & Copper Compatibility | 12mm Stud by Cabac
The Cabac Bi-Metal Lug 95mm2-Stud12mm is designed for stranded sector and circular stranded aluminium conductors, featuring a friction welded aluminium and copper joint for strong electrical performance and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 95mm2-Stud12mm
Brand: Cabac
SKU: BL95-12
Alternatively Known As: Bi-Metal Cable Lug, Aluminium Copper Lug, Friction Welded Lug, Electrical Cable Connector
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Torque Recommendations: Thread dia. 12mm / Torque 77 Nm
- Dimensions (H x L x W): n/a mm x 95mm x n/a mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
- Barrel chemically treated to reduce contact resistance and corrosion
- Tooling interchangeable between CABAC, Utilux and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian tooling and aluminium hexagonal dies to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for aluminium conductor and copper terminals or busbar connections
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Lug 95mm2-Stud12mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
