Bi-Metal Lug 97mm² 12mm Stud Cabac

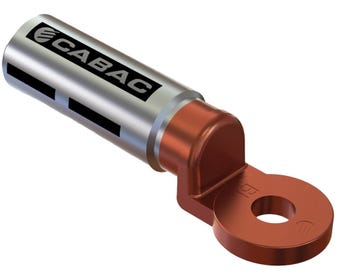

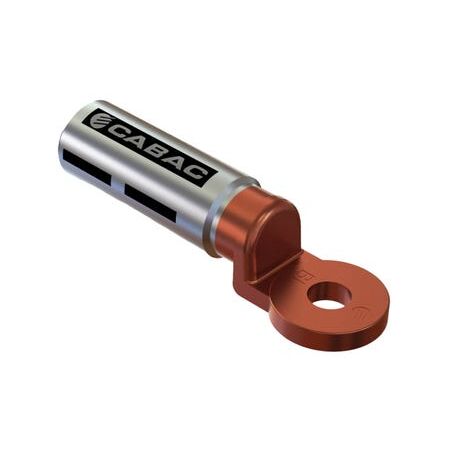

Cabac bi-metal lug features 97mm² size, 12mm stud hole, and aluminium barrel with copper palm. Ideal for aluminium cable to copper terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Lug, Aluminium-to-Copper Lug, Aluminium Barrel Copper Palm Lug, CABAC BL95-12
Technical Specifications
- Manufacturer Part Number: BL95-12
- Verified Conductor Size: 95mm²; source title states 97mm²
- Stud Hole Size: 12mm
- Material: 99.6% pure aluminium barrel with 99.9% copper palm
- Joining Method: Friction welding
- Barrel Treatment: Chemically treated and filled with jointing compound
- Operating Temperature: -40°C to +100°C
- Tensile Strength: 110MPa
- Final Metal State: Fully annealed
- Recommended Stud Torque: 77Nm for 12mm hardware
- Tooling: Standard Australian aluminium hexagonal crimp dies
- Dimensions (H x L x W): 30mm x 115mm x 35mm
- Weight: 0.14 kg
Key Features
- Terminates aluminium conductors onto copper terminals, busbars or electrical equipment
- Friction-welded aluminium-to-copper joint provides strong electrical and mechanical continuity
- Chemically treated barrel helps reduce contact resistance and corrosion
- Jointing compound helps break down aluminium oxide layers during crimping
- Sealed barrel with crimping positions and AF markings
- Compatible tooling is interchangeable between CABAC, Utilux and Burndy systems
- Designed for stranded sector and circular stranded aluminium conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using compatible crimping tools and dies. Prepare the aluminium conductor as specified by the manufacturer, crimp from the palm end to force jointing compound into the strands, and tighten the 12mm connection to the applicable torque requirement.
Applications
- Aluminium cable terminations to copper busbars
- Switchboards and distribution boards
- Circuit and electrical equipment connections
- Commercial and industrial power distribution
- Utility and infrastructure electrical installations
Standards & Compliance
- AS/NZS 4325.1 for compression connectors and cable lugs
- CABAC also lists IEC, DIN/VDE, JIS and BS requirements for the product range
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction and corrosion-resistant treatment can extend termination service life and reduce replacement waste
- Jointing compound and treated aluminium help maintain reliable electrical performance over time
Warranty Information
Covered by CABAC's applicable warranty and Australian Consumer Law guarantees. Warranty coverage is subject to correct product selection, installation and use in accordance with the manufacturer's requirements; CABAC excludes misuse, neglect and incorrect installation.
Available Now
Available through CABAC and authorised Australian electrical distributors; live stock and replenishment should be confirmed with the distributor.
