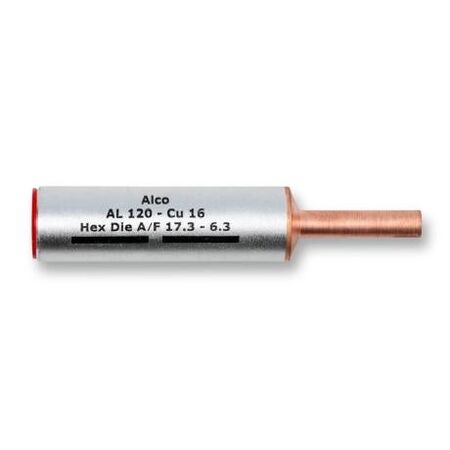

Bi-Metal Reducing Link 120-16sqmm Friction Welded Wattmaster
Wattmaster friction-welded bi-metal reducing link, 120-16sqmm aluminium-to-copper. For transitioning conductor sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Sizes: 120mm² Aluminium to 16mm² Copper
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor sizes greater than 10mm²
Environmental Benefits
- Reduces electrical resistance and energy loss by providing efficient conductor transition
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 120mm² Aluminium to 16mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
