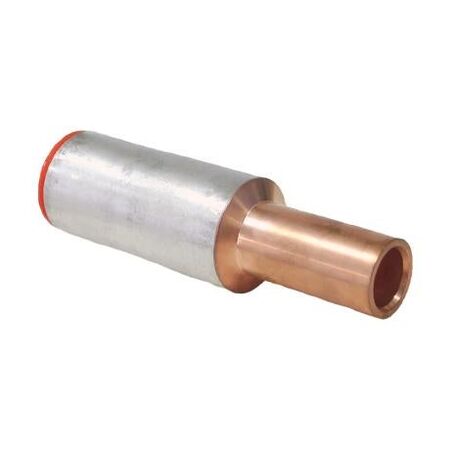

Bi-Metal Reducing Link 16-10sqmm Friction Welded Wattmaster
Wattmaster friction-welded bi-metal reducing link, 16-10sqmm aluminium-to-copper. For transitioning conductor sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Sizes: Reduces from 16mm² aluminium to 10mm² copper
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Flexible and stranded copper conductors and winding conductors
- Industrial and commercial electrical wiring installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 16mm² Aluminium to 10mm² Copper is available for immediate purchase, ideal for electrical wiring and connection applications requiring aluminium to copper conductor transitions.
