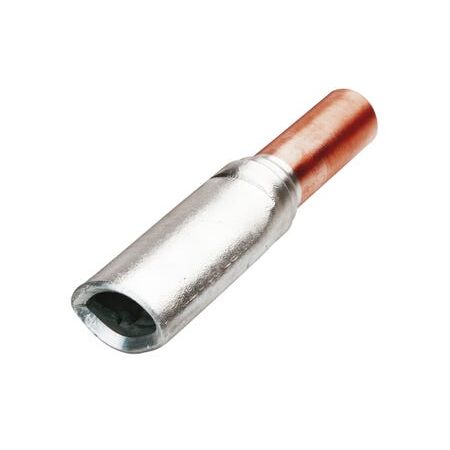

Bi-Metal Sector Link 185/3/185 | Aluminium to Copper Connection | Friction Welded Joint | 3 Core by Cabac
Cabac Bi-Metal Sector Link 185/3/185 is a high-quality 3 core link designed to connect aluminium sector cables to copper cables with a strong friction welded joint, compliant with Australian and international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Sector Link 185/3/185
Brand: Cabac
SKU: BLKS185/3/185
Alternatively Known As: Bi-metal sector link, aluminium to copper cable link, friction welded cable connector, bi-metal cable link
Technical Specifications
- Core: 3
- Conductive Material: Aluminium sleeve 99.6%, Copper palm 99.95%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: fully annealed including joint
- Joining method: friction welding (IEC standard)
- Operating temperature: -40 to 125 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to link solid or standard sector aluminium cable to circular copper cable
- Crimp with V shaped nest die and 13 tonne or larger indentor tool
- Conforms to Australian and multiple international standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools such as a V shaped nest die and a 13 tonne or larger indentor tool to ensure a secure and compliant connection.
Applications
- Electrical power connectivity for linking solid or standard sector aluminium cables to circular copper cables
- Industrial and commercial electrical installations requiring reliable bi-metal connections
- Use in power distribution and electrical network maintenance
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Durable friction welded joint reduces need for frequent replacements, minimizing waste
- High conductivity reduces energy loss in electrical connections, improving energy efficiency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Bi-Metal Sector Link 185/3/185 is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper cable linking.
