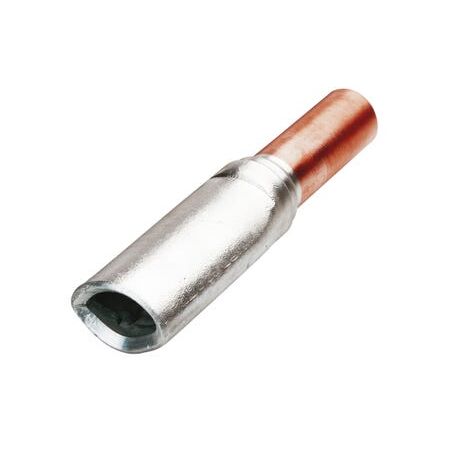

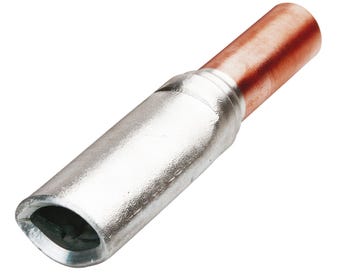

Bi-Metal Sector Link 194mm² 3-Core Al to 185mm² Cu Cabac

BRAND: CABAC
SKU: BLKS194/3/185
$134.90 List price: $179.90
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Bi-Metal Sector Link features a sector-shaped 194mm² aluminium barrel for 3-core cable and a 185mm² copper barrel. Ideal for jointing sector AL cable to Cu.

Alternatively Known As: Bi-metal sector link, aluminium-to-copper cable link, Al/Cu transition link, friction-welded cable joint

Technical Specifications
  • Cable Configuration: 3-core sector aluminium to circular copper
  • Aluminium Cable Size: 194mm² sector
  • Copper Cable Size: 185mm²
  • Construction: Friction-welded bi-metal link
  • Aluminium Sleeve: 99.6% purity
  • Copper Palm: 99.95% purity
  • Tensile Strength: 110 MPa
  • Ductility: 28%
  • Final Metal State: Fully annealed, including joint
  • Operating Temperature: -40°C to 125°C
  • Crimping Method: V-shaped nest die with 13-tonne or larger indentor tool
  • Electrical Resistivity: Aluminium 2.6 micro-ohm cm maximum; copper 1.738 micro-ohm cm
  • Electrical Conductivity: Aluminium 61.8% IACS minimum; copper 99.7% IACS
  • Dimensions (H x L x W): 20mm x 110mm x 50mm
  • Weight: 0.2 kg
Key Features
  • Joins sector-shaped aluminium cable to circular copper cable
  • Friction-welded construction provides a strong, electrically sound connection
  • Helps prevent electrolysis at the aluminium-to-copper transition
  • Fully annealed joint for improved ductility and mechanical performance
  • Designed for use with approved V-shaped nest dies and high-force indentor tooling
  • Suitable for three-core power cable jointing and distribution applications
Professional Installation Requirements
  • Installation must be performed by a licensed electrician or suitably qualified cable jointer using the manufacturer's specified V-shaped nest die and a 13-tonne or larger indentor tool. Installation should comply with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Electrical power distribution cable jointing
  • Joining three-core sector aluminium cable to copper cable
  • Commercial and industrial mains cable installations
  • Utility, infrastructure and submain cable networks
  • Aluminium-to-copper transition connections in switchboard and distribution systems
Standards & Compliance
  • AS/NZS 4325.1:1995 – Compression and mechanical connectors for power cables with copper or aluminium conductors, Part 1: Test methods and requirements
  • AS/NZS 3000:2018 – Wiring Rules, for applicable electrical installation requirements
Environmental Benefits
  • Aluminium and copper components are recyclable at end of service life
  • Friction-welded construction supports a long service life and can reduce replacement waste
  • Low-resistance conductive materials can help minimise connection losses in electrical systems
  • Bi-metal construction reduces electrolysis risk and supports reliable mixed-metal cable installations
Warranty Information

Cabac standard warranty applies. Unless otherwise stated for the product, Cabac provides a 12-month warranty from the date of purchase against defects, subject to its warranty conditions. Incorrect installation, misuse and neglect are excluded; Australian Consumer Law rights are unaffected.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
