Bi-Metal Sector Link 240/4 | Friction Welded Joint | Aluminium & Copper Compatibility | -40 to 125°C by Cabac
Cabac Bi-Metal Sector Link 240/4/70 is designed to link solid or standard sector aluminium cable to circular copper cable with a strong friction welded joint, compliant with Australian and international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

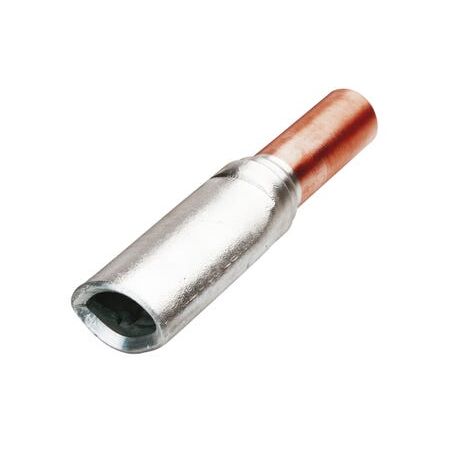

Product Name/Title: Bi-Metal Sector Link 240/4/70
Brand: Cabac
SKU: BLKS240/4/70
Alternatively Known As: Bi-metal sector link, aluminium copper cable link, friction welded cable link
Technical Specifications
- Core: 4
- Conductive Material: Aluminium sleeve 99.6%, Copper palm 99.95%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: fully annealed including joint
- Joining method: friction welding (IEC standard)
- Operating temperature: -40 to 125 °C
- Resistivity: 2.6 micro-ohm cm (max.) aluminium, 1.738 micro-ohm cm copper
- Conductivity: 61.8% IACS (min.) aluminium, 99.7% IACS copper
- Dimensions (H x L x W): 20mm x 240mm x 70mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Will not be subject to electrolysis
- Crimp with V shaped nest die and 13 tonne or larger indentor tool
- Conforms to Australian and many international standards
Professional Installation Requirements
- Installation by a qualified electrical technician is recommended to ensure proper crimping and connection.
Applications
- Linking solid or standard sector aluminium cable to circular copper cable in electrical power connectivity
Standards & Compliance
- AS4325 Part 1 Australia
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Cabac Bi-Metal Sector Link 240/4/70 is available now for immediate purchase. Ideal for electrical power connectivity applications linking aluminium and copper cables.
