Bi-Metal Sector Link 240mm² 4-Core Al to 129mm² Cu Cabac

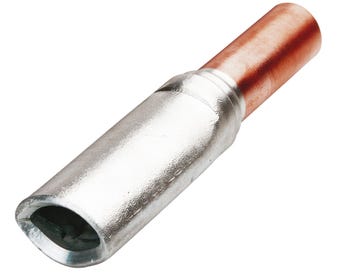

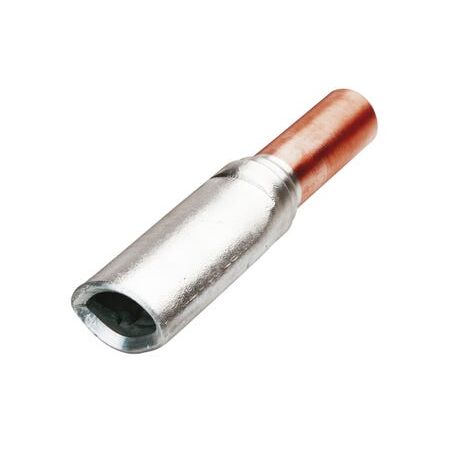

Cabac Bi-Metal Sector Link features a sector-shaped 240mm² aluminium barrel for 4-core cable and a 129mm² copper barrel. Ideal for jointing sector AL cable to Cu.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Sector Cable Link, Aluminium-to-Copper Cable Link, 4-Core Bi-Metal Joint Link
Technical Specifications
- Aluminium Cable Size: 240mm², 4-core sector conductor
- Copper Cable Size: 129mm² nominal circular conductor
- Construction: Friction-welded bi-metal joint
- Aluminium Sleeve: 99.6% aluminium
- Copper Barrel: 99.95% copper
- Tensile Strength: 110 MPa
- Ductility: 28%
- Metal Condition: Fully annealed, including the joint
- Operating Temperature: -40°C to 125°C
- Installation Tooling: V-shaped nest die with 13-tonne or larger indentor tool
- Joining Method: Professional compression crimping
- Packaging Unit: 1 each
- Dimensions (H x L x W): 40mm x 132mm x 63mm
- Weight: 0.75 kg
Key Features
- Joins 4-core sector aluminium cable to circular copper cable
- Friction-welded aluminium-to-copper transition helps provide a strong, electrically sound joint
- Designed to reduce electrolysis between dissimilar metals
- Fully annealed construction for improved ductility
- Suitable for power distribution, mains, submains, switchboard and infrastructure applications
- Compatible with correctly matched CABAC or equivalent approved crimp tooling and dies
Professional Installation Requirements
- Installation must be performed by a licensed electrical contractor using the manufacturer's specified V-shaped nest die, 13-tonne or larger indentor tool, correct crimp sequence and applicable electrical installation procedures. The completed connection should be insulated and tested as part of the finished cable system.
Applications
- Low-voltage mains and submains cable connections
- Commercial and industrial power distribution
- Switchboard and electrical equipment terminations
- Utility and infrastructure cable installations
- Transition joints between aluminium sector cable and copper conductors
Standards & Compliance
- AS 4325 Part 1 for compression and mechanical connectors for copper or aluminium power cables, as stated by CABAC; verify the current nominated standard and utility authority requirements before installation
Environmental Benefits
- Aluminium and copper components are highly recyclable at end of service life
- Friction-welded construction can improve joint durability and reduce premature replacement waste
- Reduced electrolysis risk may extend the service life of mixed-metal cable connections
- Long-life electrical connectivity can reduce maintenance-related material consumption
Warranty Information
CABAC standard warranty is generally 12 months from the date of purchase unless a different warranty is stated for the product. Warranty excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical wholesalers and distributors; confirm current stock and any special-manufacture lead time before ordering.
