Bi-Metal Sector Link 322mm² 3-Core Al to 185mm² Cu Cabac

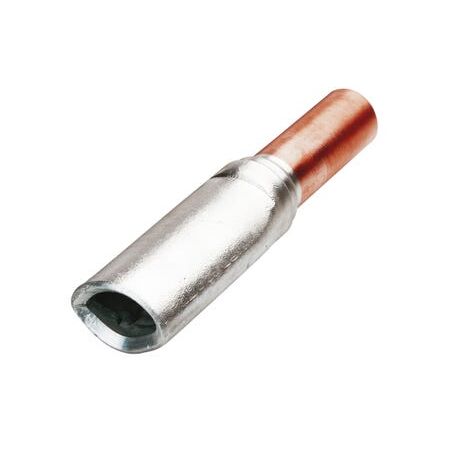

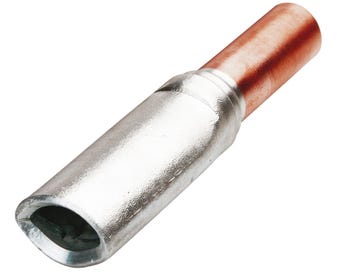

Cabac Bi-Metal Sector Link features a sector-shaped 322mm² aluminium barrel for 3-core cable and a 185mm² copper barrel. Ideal for jointing sector AL cable to Cu.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Link, Aluminium-to-Copper Sector Link, 3-Core Sector Cable Connector, Al/Cu Compression Link
Technical Specifications
- Aluminium Conductor Size: 322 mm² sector, 3-core
- Copper Conductor Size: 185 mm² circular
- Conductive Materials: 99.6% aluminium sleeve and 99.95% copper palm
- Joining Method: Friction welding
- Operating Temperature: -40°C to 125°C
- Crimping Method: V-shaped nest die with a 13-tonne or larger indentor tool
- Aluminium Crimps: Use manufacturer-specified V-nest and indentor tooling
- Copper Crimps: Use manufacturer-specified 185 mm² copper compression die
- Tensile Strength: 110 MPa
- Final Metal State: Fully annealed, including the welded joint
- Electrical Conductivity: Aluminium minimum 61.8% IACS; copper 99.7% IACS
- Packaging Unit: 1 each
- Dimensions (H x L x W): 45mm x 150mm x 45mm
- Weight: 0.8 kg
Key Features
- Joins 3-core sector-shaped aluminium cable to circular copper cable
- Friction-welded aluminium-to-copper transition designed to resist electrolysis
- Manufactured from high-conductivity aluminium and copper
- Suitable for power cable jointing and termination applications
- Designed for use with CABAC and compatible 13-tonne or larger compression tooling
- Sector cable geometry supports connection to large aluminium distribution cables
Professional Installation Requirements
- Installation must be performed by a licensed electrical contractor using the manufacturer-specified compression dies, crimp sequence and cable preparation procedure. The completed connection should be installed and tested in accordance with applicable wiring rules, network requirements and manufacturer instructions.
Applications
- Joining 3-core sector-shaped aluminium power cable to copper conductors
- Electrical distribution and switchboard connections
- Underground power cable jointing and transition connections
- Utility, industrial and commercial power installations
Standards & Compliance
- AS/NZS 4325.1:1995 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction helps reduce electrolysis-related failure and replacement waste
- Long service life can reduce maintenance frequency and material consumption
- Enables the use of aluminium conductors, which can reduce conductor material mass compared with equivalent copper cable systems
Warranty Information
Covered by CABAC's published warranty terms and Australian Consumer Law. CABAC's lifetime-of-product warranty applies where applicable, provided the product is installed and used as specified; misuse, incorrect installation and unauthorised repair are excluded.
Available Now
Available through CABAC and authorised Australian electrical wholesalers and distributors; special-size configurations may be supplied subject to manufacturer confirmation.
