Bi-Metal Sector Link 95mm² 3-Core Aluminium to 70mm² Copper Cabac

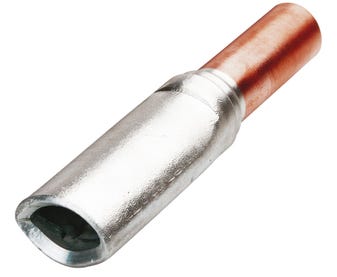

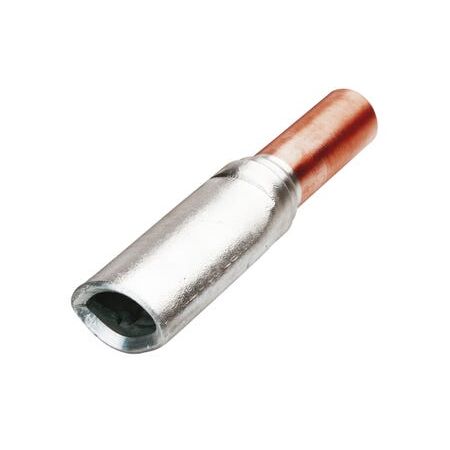

Cabac Bi-Metal Sector Link features a sector-shaped 95mm² aluminium barrel for 3-core cable and a 70mm² copper barrel. Ideal for jointing sector AL cable to Cu.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3-Core Bi-Metal Cable Link, Aluminium-to-Copper Sector Link, Bi-Metal Crimp Splice
Technical Specifications
- Manufacturer Part Number: BLKS95/3/70
- Cable Application: 3-core solid sector aluminium to stranded copper
- Nominal Conductor Size: 95mm² aluminium to 70mm² copper
- Aluminium Stranding: 3-core sector cable
- Material: 99.6% pure aluminium sleeve and 99.9% pure copper section
- Joining Method: Friction welding
- Jointing Compound: Pre-filled and barrel coated
- Aluminium Crimping: A12 nest, A15 indent, 3 crimps
- Copper Crimping: HT130-C-70, 11.5mm hex die, 1 crimp
- Operating Temperature: -40°C to 125°C
- Electrical Properties: Aluminium conductivity minimum 61.8% IACS; copper conductivity 99.7% IACS
- Tensile Strength: 110MPa
- Ductility: 28%
- Packaging Unit: 1 each
- Barcode: 9318674554622
- Dimensions (H x L x W): 16.2mm x 106mm x 50mm
- Weight: 0.15 kg
Key Features
- Connects 95mm² 3-core sector aluminium cable to 70mm² copper cable
- Friction-welded aluminium-to-copper joint for a strong electrical connection
- Designed to reduce electrolysis and galvanic corrosion between dissimilar metals
- Pre-filled jointing compound helps protect the cable interface
- Suitable for CABAC and compatible 12-tonne hydraulic crimping tools and dies
- Annealed bi-metal construction with clearly defined crimping requirements
Professional Installation Requirements
- Installation must be performed by a licensed electrician or suitably qualified electrical contractor using the specified crimping dies and manufacturer instructions. De-energise and isolate the circuit before installation, and verify the completed connection in accordance with applicable wiring and utility requirements.
Applications
- Jointing 3-core sector aluminium power cable to copper cable
- Electrical distribution and power network connections
- Switchboard, feeder and underground cable termination work
- Transition joints between aluminium and copper conductors
Standards & Compliance
- AS/NZS 4325.1 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium and copper components are highly recyclable at end of service life
- Friction-welded construction helps reduce corrosion-related failures and replacement waste
- Durable bi-metal construction can extend the service life of cable joints
- Jointing compound helps protect the connection and reduce premature component replacement
Warranty Information
CABAC standard warranty is 12 months from the date of purchase unless a different product warranty is stated. Warranty excludes misuse, neglect and incorrect installation, and applies in addition to non-excludable rights under Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
