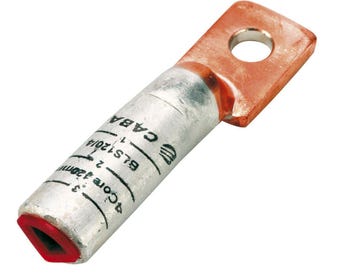

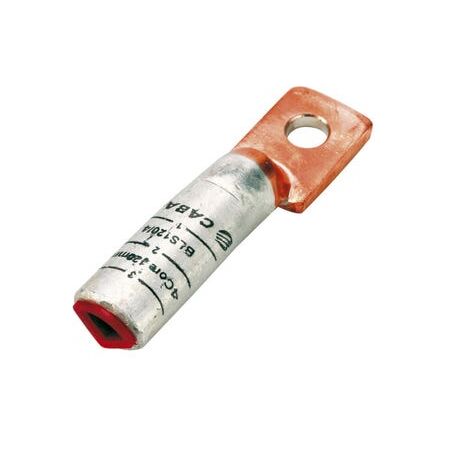

Bi-Metal Sector Lug 185mm² 4 Core | Friction Welded Joint | Corrosion Resistant | Aluminium & Copper by Cabac

BRAND: CABAC
SKU: BLS185/4-12
$41.90 List price: $50.80
+ −
30 Days Return Delivery Options
Cabac Bi-Metal Sector Lug 185mm2 4 Core is designed for terminating solid aluminium conductors with a strong friction welded joint and corrosion-resistant aluminium barrels.

Product Name/Title: Bi-Metal Sect Lug 185Mm2 4Core

Brand: Cabac

SKU: BLS185/4-12

Alternatively Known As: Bi-Metal Lug, Aluminium Copper Lug, 4 Core Sector Lug, Electrical Conductor Lug

Technical Specifications
  • Nominal Conductor Size: 185 mm²
  • Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
  • Tensile Strength: 110 MPa
  • Ductile Rating: 28%
  • Final Metal State: Fully Annealed including joint
  • Joining Method: Friction Welding (IEC standard)
  • Operating Temperature Range: -40 to 100 °C
  • Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
  • Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
  • Dimensions (H x L x W): 20mm x 185mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Manufactured using friction welding process producing a very strong electrically sound joint
  • Designed to terminate a solid aluminium, 4 core conductor
  • Crimp with V shaped nest die and 13 tonne or larger indentor tool
  • Aluminium barrels chemically treated to reduce contact resistance and corrosion
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools (V shaped nest die and 13 tonne or larger indentor tool) to ensure secure and compliant connections.
Applications
  • Electrical power connectivity for terminating solid aluminium conductors
  • Suitable for use in electrical installations requiring reliable conductor termination
Standards & Compliance
  • Complies with AS/NZS 4325 Part 1
Environmental Benefits
  • Chemically treated aluminium barrels reduce corrosion, extending product life and reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Bi-Metal Sector Lug 185mm2 4 Core is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium conductor termination.
