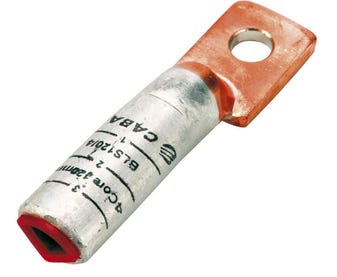

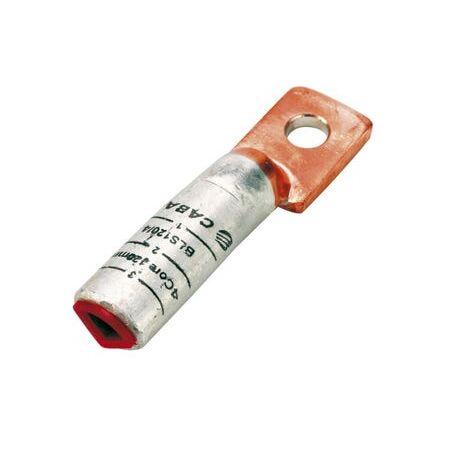

Bi-Metal Sector Lug 240mm² 4 Core | Aluminium & Copper | Friction Welded Joint | Corrosion Resistant by Cabac
Cabac Bi-Metal Sector Lug 240mm2 4 Core is designed for terminating solid aluminium conductors with a strong, corrosion-resistant friction welded joint.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Sect Lug 240Mm2 4Core
Brand: Cabac
SKU: BLS240/4-12
Alternatively Known As: Bi-Metal Lug, Aluminium Copper Lug, 240mm2 Sector Lug, 4 Core Electrical Lug
Technical Specifications
- Nominal Conductor Size: 240 mm²
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Operating Temperature Range: -40 to 100 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to terminate a solid aluminium, 4 core conductor
- Crimped with V shaped nest die and 13 tonne or larger indentor tool
- Aluminium barrels chemically treated to reduce contact resistance and corrosion
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools (V shaped nest die and 13 tonne or larger indentor tool) to ensure secure and compliant connections.
Applications
- Electrical power connectivity for terminating solid aluminium conductors
- Suitable for use in electrical installations requiring reliable conductor termination
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 – Electrical & Electronics
Environmental Benefits
- Chemically treated aluminium barrels reduce corrosion, extending product life and reducing waste
- Durable friction welded joint minimizes electrical resistance, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bi-Metal Sector Lug 240mm2 4 Core is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium conductor termination.
