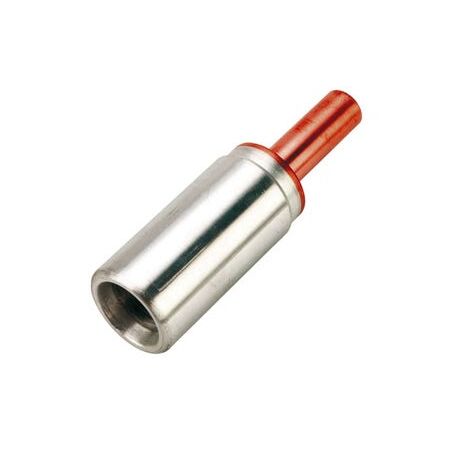

Bi-Metal Stalk 35mm² Cable 6mm Stalk Cabac

BRAND: CABAC
SKU: BS35/6
$73.40 List price: $97.90
+ −
30 Days Return Electricians Unlock Trade Access

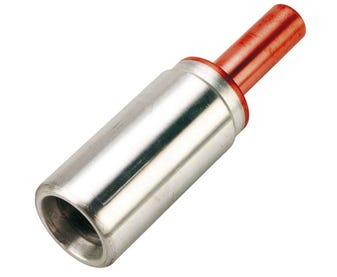

Cabac Bi-Metal Stalk features a 35mm² aluminium crimp barrel and a 6mm copper stalk. Ideal for terminating aluminium cable into copper tunnel terminals.

Alternatively Known As: Bi-metal cable stalk, aluminium-to-copper stalk lug, aluminium cable reducer stalk

Technical Specifications
  • Nominal Cable Size: 35mm² aluminium cable
  • Copper Stalk Diameter: 6mm
  • Aluminium Barrel Internal Diameter: Approximately 8.5mm
  • Aluminium Stranding Reference: 19/1.53
  • Construction: Friction-welded aluminium and copper
  • Aluminium Material: 99.6% pure aluminium
  • Copper Material: 99.9% or higher purity copper
  • Crimping: CABAC/MSS Power standard tooling with aluminium dies
  • Jointing Compound: Barrel coated with jointing compound
  • Operating Temperature: -40°C to +125°C
  • Packaging: Individually packed
  • Applicable Product Standard: AS/NZS 4325.1
  • Dimensions (H x L x W): 14mm x 70mm x 14mm
  • Weight: 0.1 kg
Key Features
  • Connects stranded aluminium cable to copper terminals
  • Designed for electrical equipment with clamp or tunnel terminals
  • Friction-welded aluminium-to-copper transition reduces galvanic compatibility issues
  • Suitable for standard Australian crimping methods
  • Factory-applied jointing compound helps protect the aluminium cable interface
  • Compact 6mm copper stalk for connection to compatible copper terminals
Professional Installation Requirements
  • Installation and crimping should be performed by a licensed electrician or suitably qualified electrical tradesperson using the manufacturer's specified aluminium crimping tooling and following applicable wiring rules.
Applications
  • Terminating 35mm² aluminium power cable into copper tunnel terminals
  • Connecting aluminium conductors to copper electrical equipment
  • Switchboard and distribution equipment connections
  • Overhead and power distribution installations requiring aluminium-to-copper transitions
Standards & Compliance
  • AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
  • Aluminium and copper components are recyclable at end of service life
  • Friction-welded construction supports a durable connection and can reduce replacement waste
  • Enables continued use of lightweight aluminium cable in systems requiring copper terminal interfaces
Warranty Information

CABAC standard warranty is generally 12 months from the date of purchase against defects, subject to correct installation, use and the applicable CABAC warranty terms. Australian Consumer Law rights are retained.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to current distributor stock.
