Trade Discount 17%

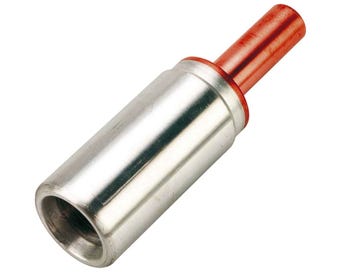

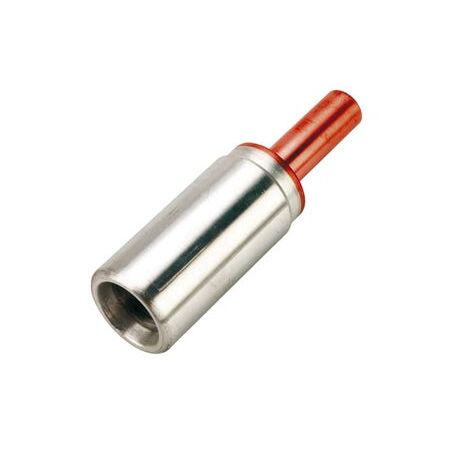

Bi-Metal Stalk Cable Lug 10mm² | Aluminium to Copper | 12mm Stalk Diameter | Crimping Compatible by Cabac
Cabac Bi-Metal Stalk 10mm2 Cable Lug is designed for secure connection of aluminium cables to copper overhead conductors, suitable for electrical equipment with clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Stalk 10mm2 Cable
Brand: Cabac
SKU: BS10/12
Alternatively Known As: Bi-Metal Cable Lug, Aluminium to Copper Cable Lug, Stalk Lug 10mm2
Technical Specifications
- Conductor Size: 10mm²
- Material: Bi-metal (Aluminium to Copper)
- Crimping Method: CABAC/MSS Power standard tools or aluminium dies
- Stalk Diameter: 12mm
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Designed for attaching aluminium cable to copper overhead conductors
- Suitable for electrical equipment with clamp terminals
- Crimped with CABAC/MSS Power standard tools or aluminium dies
- Identification digits indicate conductor size and stalk diameter
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- Electrical equipment with clamp terminals
- Connecting aluminium cable to copper overhead conductors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable bi-metal construction reduces need for frequent replacements
Warranty Information
Warranty terms as per Cabac standard product warranty policy.
Available Now
The Cabac Bi-Metal Stalk 10mm2 Cable Lug is available now for immediate purchase. Ideal for electrical and power connectivity applications involving aluminium to copper cable connections.
