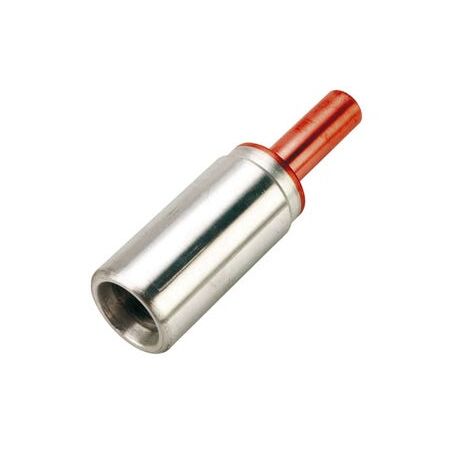

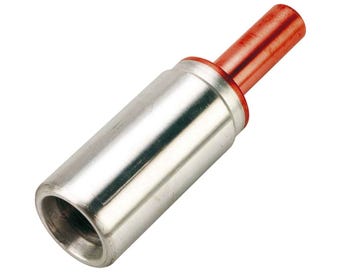

Bi-Metal Stalk Cable Lug 120mm2 | 14mm Diameter | Aluminium to Copper Connection | Secure Crimping by Cabac
Cabac Bi-Metal Stalk 120mm2 Cable Lug is designed for secure connection of aluminium cables to copper overhead conductors, suitable for electrical equipment with clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Stalk 120mm2 Cable
Brand: Cabac
SKU: BS120/14
Alternatively Known As: Bi-Metal Cable Lug, Aluminium to Copper Cable Lug, Stalk Lug 120mm2
Technical Specifications
- Conductor Size: 120mm2
- Stalk Diameter: 14mm
- Material: Bi-metal (Aluminium and Copper)
- Crimping Method: CABAC/MSS Power standard tools or aluminium dies
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for aluminium to copper cable connections
- Crimped with CABAC/MSS Power standard tools or aluminium dies
- Stalk lugs designed for secure electrical connections
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- Electrical equipment with clamp terminals
- Connecting aluminium cable to copper overhead conductors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce need for frequent replacements
Warranty Information
Warranty as per manufacturer’s standard terms and conditions.
Available Now
The Cabac Bi-Metal Stalk 120mm2 Cable Lug is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable aluminium to copper cable connections.
