Bimetal 4 Core Sector Link | Al185 to Cu120mm² | Friction Welded | Durable Design by Cabac

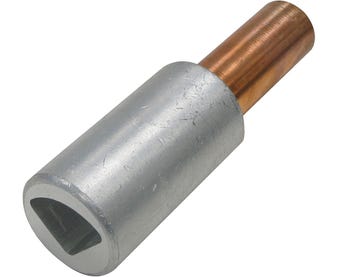

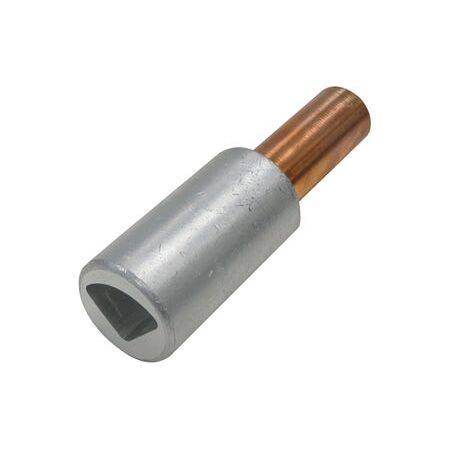

Cabac Bimetal 4 Core Sector Link AL185 to CU120mm2 is a high-quality bi-metal lug designed for strong, reliable connections between four core solid sector aluminium conductors and stranded copper conductors, suitable for URD installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal 4 Core Sect Link Al185 To Cu120mm2
Brand: Cabac
SKU: BLKSC185/4/120
Alternatively Known As: Bi-metal sector link, aluminium to copper sector link, 4 core aluminium to copper connector, friction welded sector link
Technical Specifications
- Aluminium End Conductor: 185 mm² Sector 4 Core
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Cable Sector Shape: BS3988-1970
- Operating Temperature: -40 to 125 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 20mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to joint four core solid sector aluminium conductors
- Crimp with conventional hex dies due to barrel format design
- Round external dimension on aluminium end with sector shaped internal dimension
- Specifically designed for solid four core aluminium conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician using appropriate crimping tools and following safety standards.
Applications
- Jointing or terminating four core solid sector aluminium conductors
- Used in URD (Underground Residential Distribution) installations
- Connecting four core aluminium sector conductors to stranded copper conductors
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss in power distribution
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bimetal 4 Core Sector Link AL185 to CU120mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
