Bimetal 4 Core Sector Link | Al240 to Cu120mm2 | Friction Welded Joint | High Conductivity by Cabac

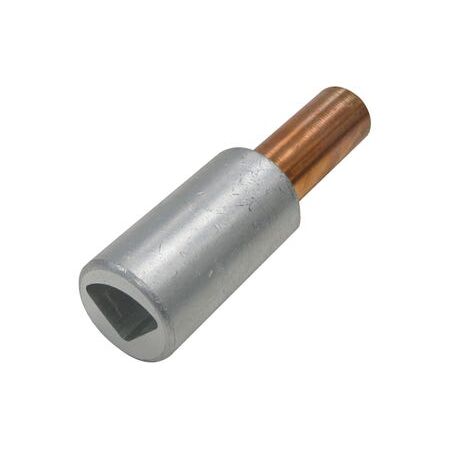

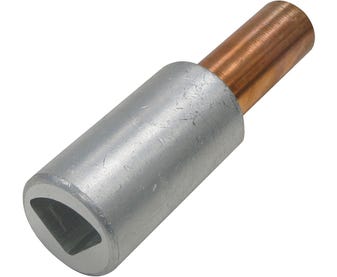

Cabac Bimetal 4 Core Sector Link AL240 to CU120mm2 is a high-quality bi-metal lug designed for joining four core solid sector aluminium conductors to stranded copper conductors using friction welding and conventional hex crimp dies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal 4 Core Sect Link Al240 To Cu120mm2
Brand: Cabac
SKU: BLKSC240/4/120
Alternatively Known As: Bi-metal sector link, aluminium to copper sector link, 4 core aluminium to copper connector, bimetallic lug, aluminium copper sector joint
Technical Specifications
- Aluminium End Conductor: 240 mm² Sector 4 Core
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Cable Sector Shape: BS3988-1970
- Operating Temperature: -40 to 125 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to joint four core solid sector aluminium conductors
- Crimp with conventional hex dies due to barrel format design
- Round external dimension on aluminium end with sector shaped internal dimension
- Specifically designed for solid four core aluminium conductors
- Joins four core aluminium sector to conventional stranded copper conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and following safety standards.
Applications
- Used to join or terminate four core solid sector aluminium conductors in URD installations
- Suitable for electrical power connectivity applications requiring aluminium to copper conductor connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Durable friction welded joint reduces need for replacements, minimizing waste
- High conductivity materials improve energy efficiency in electrical connections
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Bimetal 4 Core Sector Link AL240 to CU120mm2 is available for immediate purchase, ideal for electrical power connectivity and industrial applications.
