Bimetal 4 Core Sector Link | Al240 to Cu150mm² | Friction Welded | Durable Design by Cabac

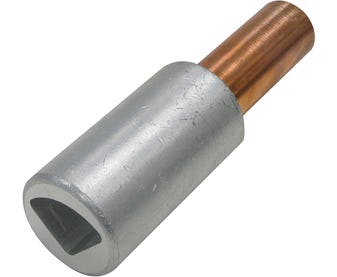

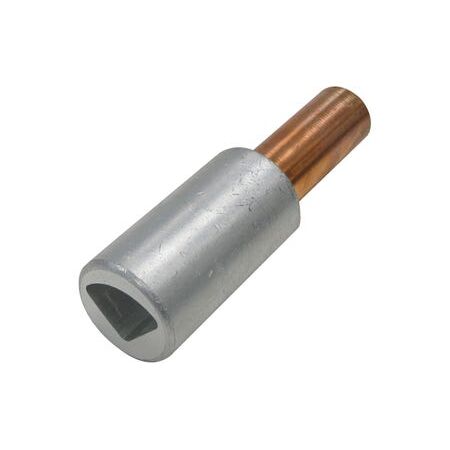

Cabac Bimetal 4 Core Sector Link AL240 to CU150mm2 is a high-quality bi-metal lug designed for joining four core solid sector aluminium conductors to stranded copper conductors, featuring friction welding and compatibility with conventional hex crimp dies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal 4 Core Sect Link Al240 To Cu150mm2
Brand: Cabac
SKU: BLKSC240/4/150
Alternatively Known As: Bi-metal sector link, aluminium to copper sector link, 4 core sector lug, bi-metal lug AL to CU, aluminium copper sector connector
Technical Specifications
- Aluminium End Conductor: 240mm² Sector 4 Core
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Cable Sector Shape: BS3988-1970
- Operating Temperature: -40 to 125°C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to joint four core solid sector aluminium conductors
- Crimp with conventional hex dies due to barrel format design
- Round (circular) external dimension on aluminium end with sector shaped internal dimension
- Specifically designed for solid four core aluminium conductors used in URD installations
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional to ensure proper crimping and secure connections.
Applications
- Used to join four core solid sector aluminium conductors to conventional stranded copper conductors in URD installations
- Electrical power connectivity applications requiring bi-metal lugs and links
Standards & Compliance
- AS/NZS 4325 Part 1 – Electrical & Electronics
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss in power transmission
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bimetal 4 Core Sector Link AL240 to CU150mm2 is available for immediate purchase, ideal for electrical power connectivity and URD installation applications.
