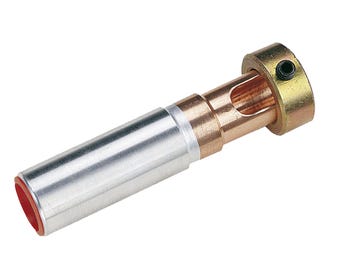

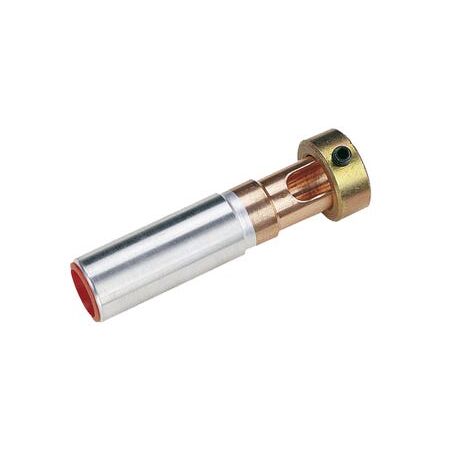

Bimetal Switch Gear Connector 185mm² | Friction Welded Aluminium Lug | Zinc-Plated Steel Collar by Cabac
The Cabac Bimetal Switch Gear Connector 185mm2 is designed for reliable termination of aluminium conductors onto 12mm copper switch stems, featuring a friction welded aluminium lug and zinc-plated steel clamping collar.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal Switch Gear Connector 185mm2
Brand: Cabac
SKU: BSC185/12K
Alternatively Known As: Bimetallic Lug Connector, Aluminium to Copper Switchgear Connector, Bi-metal Switchgear Lug
Technical Specifications
- Connector Size: 185mm²
- Compatible with 12mm copper switch stems
- Lug Material: High-quality aluminium, friction welded
- Clamping Collar Material: Zinc-plated steel
- Standards Compliance: Australian and international standards
- Dimensions (H x L x W): 20mm x 185mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for terminating aluminium conductors onto a 12mm copper switch stem
- Lug is friction welded from the highest quality aluminium
- Clamping collar made from zinc-plated steel
- Conforms to Australian and many international standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical power connectivity for terminating aluminium conductors
- Suitable for use with 12mm copper switch stems in switchgear
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Conforms to standards ensuring safe and efficient electrical connections
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Bimetal Switch Gear Connector 185mm2 is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial switchgear.
