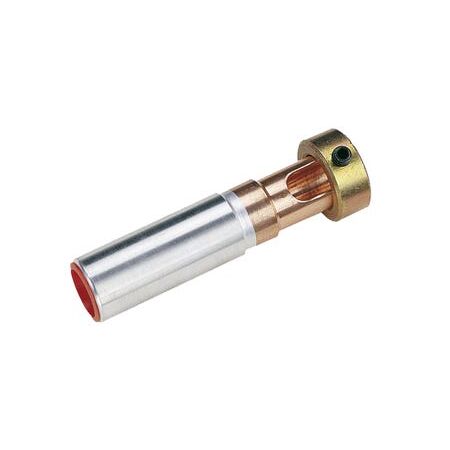

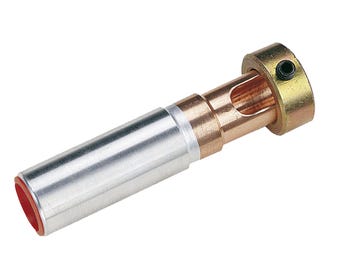

Bimetal Switch Gear Connector 300mm² | Friction Welded Bi-Metal Lug | Zinc-Plated Steel Collar by Cabac
The Cabac Bimetal Switch Gear Connector 300mm2 is designed for terminating aluminium conductors onto a 12mm copper switchgear stem, featuring a friction welded bi-metal lug and zinc-plated steel clamping collar for reliable current transfer.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal Switch Gear Connector 300mm2
Brand: Cabac
SKU: BSC300/12K
Alternatively Known As: Bi-metal lug connector, Aluminium to copper switchgear connector, Bi-metal switchgear lug, Aluminium conductor connector
Technical Specifications
- Nominal Conductor Size: 300 mm²
- Stranding: 61 strands of 2.52 mm diameter
- Switchgear Stem Diameter: 12 mm
- Conductive Materials: Aluminium sleeve 99.6% pure, Copper stalk 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding (IEC standard)
- Operating Temperature Range: -40 to +100 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 30mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Bi-metal lug friction welded from high quality aluminium (99.6% pure) and copper (99.9% IACS)
- Aluminium barrel coated with jointing compound and sealed with plastic cap
- Clamping collar made from zinc-plated steel with a cut to prevent heat generating eddy currents
- Designed for stranded sector and circular stranded aluminium conductors
- Can be crimped with standard Australian tooling
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with bi-metal connectors and switchgear to ensure proper crimping and secure connections.
Applications
- Terminating aluminium conductors onto 12mm copper switchgear stems
- Electrical power connectivity in industrial and commercial switchgear installations
Standards & Compliance
- AS 4325 Part 1 Australia
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bimetal Switch Gear Connector 300mm2 is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial switchgear systems.
