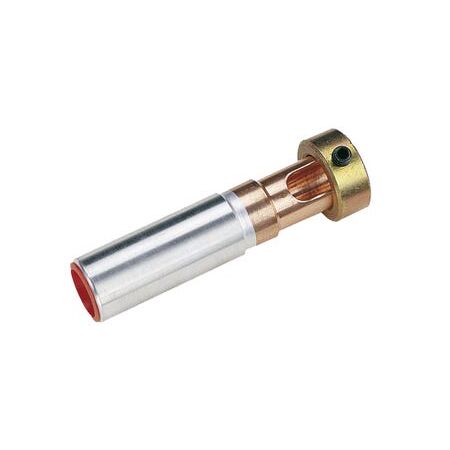

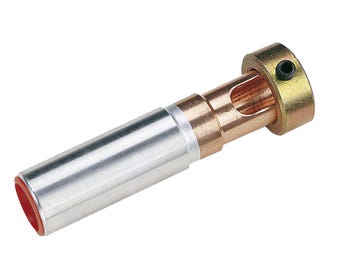

Bimetal Switch Gear Connector 35mm² | Friction Welded Bi-Metal Lug | Zinc-Plated Steel Collar | -40 to +100°C by Cabac
The Cabac Bimetal Switch Gear Connector 35mm2 is designed for terminating aluminium conductors onto 12mm copper switchgear stems, featuring a friction welded bi-metal lug and zinc-plated steel clamping collar for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetal Switch Gear Connector 35mm2
Brand: Cabac
SKU: BSC35/12K
Alternatively Known As: Bi-metal lug connector, Aluminium to copper switchgear connector, Bi-metal switchgear lug, Aluminium conductor connector
Technical Specifications
- Nominal Conductor Size: 35 mm²
- Stranding: 19 strands of 1.53 mm diameter
- Switchgear Stem Diameter: 12 mm
- Conductive Materials: Aluminium sleeve 99.6% pure, Copper stalk 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding (IEC standard)
- Operating Temperature Range: -40 to +100 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Bi-metal lug friction welded from 99.6% pure aluminium and 99.9% pure copper
- Steel clamping collar with zinc plating and cut to prevent eddy currents
- Aluminium barrel coated with jointing compound and sealed with plastic cap
- Clamping collar with allen head grub screw for secure bolted connection
- Made to Australian dimensions and compatible with standard Australian tooling
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Terminating aluminium conductors onto 12mm copper switchgear stems
- Electrical power connectivity in industrial and commercial switchgear
- Suitable for stranded sector and circular stranded aluminium conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss during operation
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Bimetal Switch Gear Connector 35mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor termination.
