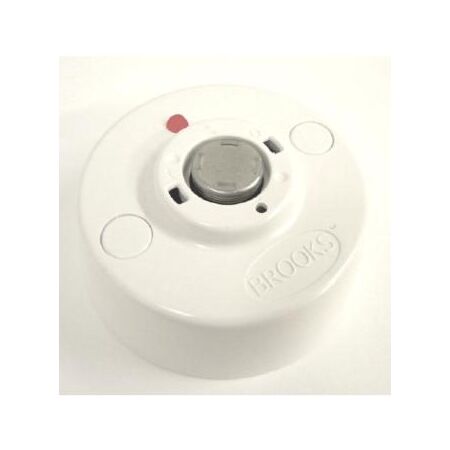

Bimetallic Heat Detector 80°C | Roof Space | White
Bimetallic heat detector with 80°C activation, ideal for roof space applications. Built for seamless integration with Radiolink alarms, featuring a compact design and easy daisy chaining.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bimetallic Heat Detector 80°C | Roof Space | White
SKU: HS80
Alternatively Known As: Heat Sensor 80°C, Roof Space Heat Detector, Bimetallic Temperature Switch
Technical Specifications
- Sensor Temperature: Closed contact at 80°C ± 5°C
- Voltage Range: 0 - 30 V
- Quiescent/Alarm Current: 0 mA
- Material: Polycarbonate ABS Combination rated to 135°C
- Dimensions (H x L x W): 35mm x 72mm x 72mm
- Weight: 0.1 kg
Key Features
- Bimetallic heat detection switch activates at 80°C ± 5°C
- Normally open switch closes on reaching set temperature
- Four terminals for two wire parallel input/output allowing daisy chaining
- Compatible with Radiolink alarm devices such as EIB408RFH
Professional Installation Requirements
- Installation should be performed by a qualified fire safety or electrical professional to ensure compliance and optimal performance.
Applications
- Roof space heat detection
- Fire alarm systems integration
- Remote temperature monitoring in buildings
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Helps in early fire detection reducing potential environmental damage
- Durable polycarbonate ABS material ensures long product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Brooks HS80 Bimetallic Heat Detector is available now for immediate purchase. Ideal for roof space heat detection in residential and commercial buildings.
