Blade Terminal Relay 7A 4 CO | 24V AC Coil | Gold Contacts by NHP
Blade terminal relay with 7A current and 24V AC coil—ideal for industrial automation and control panels. Built for reliability, with gold contacts for enhanced conductivity and easy plug-in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

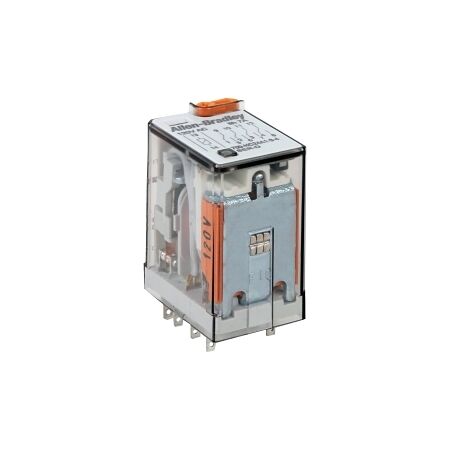

Product Name/Title: Allen-Bradley 700-HC Square with Blade Terminal Relay 7A 4 CO 24V AC Coil Gold Contacts
Brand: NHP
SKU: 700HC14A24
Alternatively Known As: 700-HC Relay, Blade Terminal Relay, General Purpose Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 277 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Degree of Protection: IP20
- Operating Temperature: -30 to 55 °C
- Dimensions (H x L x W): 27.7mm x 37.2mm x 20.7mm
- Weight: 0.2 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Gold contacts for enhanced conductivity and reliability.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Square Relay with Blade Terminal is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
