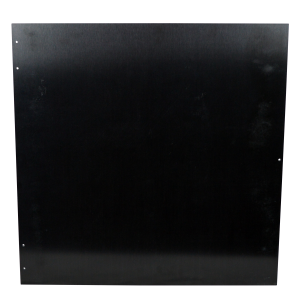

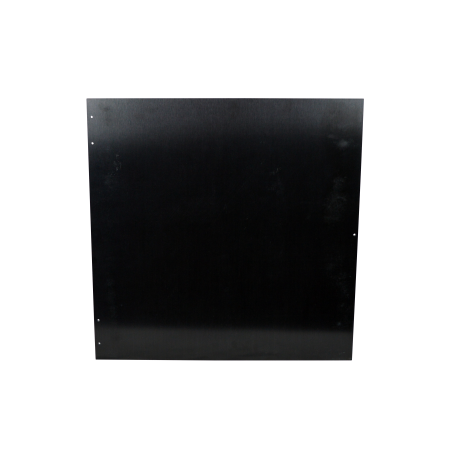

Blank Bakelite Switch Panel 600x596x6mm Bovara
Bovara blank bakelite switch panel features 600H x 596W x 6D mm, TUV tested for water absorption, insulation resistance and 960°C glow wire. Suits PS100 and PS100D.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara PSPB600 Blank Bakelite Panel, Blank Meter Panel, Electrical Switchboard Backing Panel
Technical Specifications
- Material: Bakelite electrical insulation board
- Panel Type: Blank, undrilled switch panel
- Nominal Thickness: 6 mm
- TÜV Testing: Water absorption, insulation resistance and 960°C glow wire testing
- Compatibility: Bovara PS100 and PS100D panel applications
- Manufacturer Reference: PSPB600
- Installation Context: Meter panels and wall-mounted switchboard assemblies
- Dimensions (H x L x W): 600mm x 6mm x 596mm
- Weight: 2.8 kg
Key Features
- Blank panel allows custom meter and switchboard layouts
- 6 mm bakelite construction provides electrical insulation
- TÜV tested for water absorption, insulation resistance and 960°C glow wire performance
- Designed for Bovara PS100 and PS100D meter-panel applications
- Suitable for wall-mounted electrical meter-panel assemblies
Professional Installation Requirements
- Drilling, fitment and electrical installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and the applicable electricity distributor service and installation rules. Confirm panel suitability before cutting or mounting.
Applications
- Bovara PS100 and PS100D meter-panel assemblies
- Residential electrical meter panels
- Commercial switchboard assemblies
- Custom low-voltage electrical enclosures
Standards & Compliance
- NSW Service and Installation Rules, as specified for the Bovara meter-panel range
- AS/NZS 3000:2018 applies to the wiring and completed electrical installation
Environmental Benefits
- Durable thermoset construction can support extended service life and reduce replacement waste
- Electrical insulation performance supports reliable long-term operation of the completed switchboard assembly
- Blank panel format avoids unnecessary pre-machining where a custom layout is required
Warranty Information
Bovara-specific warranty terms were not identified in the available product documentation. Product claims remain subject to applicable Australian Consumer Law guarantees and the supplier’s warranty assessment.
Available Now
Available through authorised Bovara distributors in Australia.
