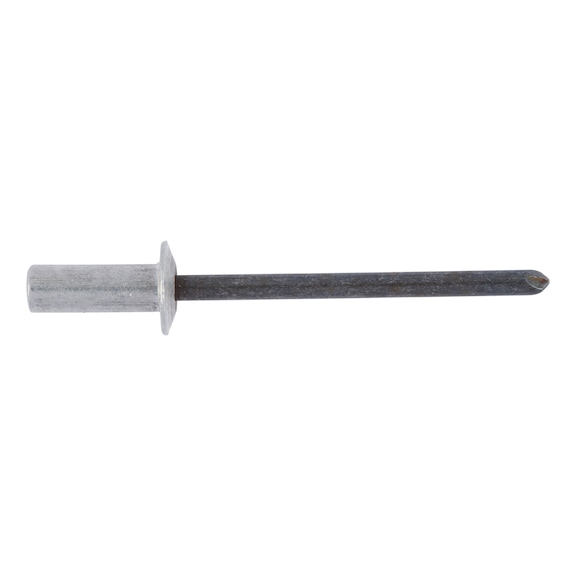

Blind Bucket Rivet Flat Head | Aluminium Sleeve & Steel Mandrel | 50 PCS | by Wurth
Blind bucket rivets with an aluminium sleeve and steel mandrel are perfect for fastening materials from one side, making them ideal for sheet metal, automotive, and construction applications. With a durable design and a captive mandrel head, these rivets ensure secure fastening and are RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Bucket Rivet Flat Head | Aluminium Sleeve & Steel Mandrel | 50 PCS | by Wurth
Brand: Wurth
SKU: 93703265
Alternatively Known As: Blind rivet, Pop rivet, Flat head rivet, Bucket rivet
Technical Specifications
- Nominal diameter x length: 3.2 x 6.5 mm
- Head diameter: 6.0 mm
- Head height: 1.3 mm
- Min./max. grip range: 0.5-2.0 mm
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of sleeve and mandrel: Plain
- Drill hole diameter: 3.3 mm
- Shear-fracture load: 1100 N
- Tensile fracture load: 1450 N
- Head type: Truss head
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 6.5mm x 6mm
- Weight: 0.05 kg
Key Features
- Sleeve made of aluminium for lightweight and corrosion resistance
- Mandrel made of bare steel providing high shear strength
- Captive riveting mandrel head ensures secure fastening
- Very thick rivet body wall for durability
- Bucket-shaped rivet shank for air and spray water-proof riveting
Professional Installation Requirements
- Installation requires appropriate riveting tools and should be performed by trained personnel to ensure proper fastening and safety.
Applications
- Used for fastening materials where access is only possible from one side
- Ideal for sheet metal, automotive, and construction applications
- Suitable for air and spray water-proof riveting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with EN ISO 15973 dimensional and tolerance standards
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Blind Bucket Rivet Flat Head 50 PCS is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
