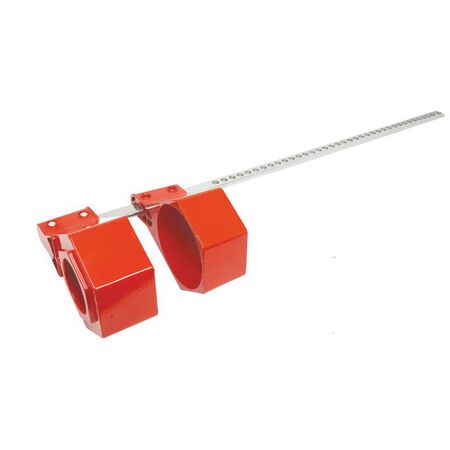

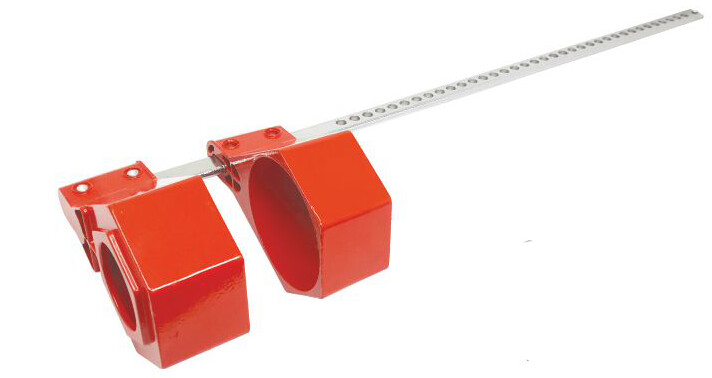

Blind Flange Lockout | Large Size | Durable Polypropylene | High Visibility Red | @Pack by Repelec
The Blind Flange Lockout is designed for secure isolation of pipelines during maintenance, featuring durable polypropylene construction and a bright red color for high visibility. Ideal for industrial, oil & gas, and chemical processing applications, it accommodates up to 4 padlocks, ensuring safety compliance and preventing accidental operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Flange Lockout | Large Size | Durable Polypropylene | High Visibility Red | @Pack by Repelec
Brand: Repelec
SKU: CIRFLD-3
Alternatively Known As: Blind Flange Lockout Device, Flange Lockout Tagout, Pipeline Flange Lockout, Large Flange Lockout, CIRFLD-3 Lockout
Technical Specifications
- Material: High-impact polypropylene
- Color: Red
- Maximum flange diameter: 254 mm (10 inches)
- Padlock holes: Accommodates up to 4 padlocks
- Temperature resistance: -20°C to 80°C
- Chemical resistance: Suitable for use in harsh industrial environments
- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- Durable polypropylene construction for chemical and impact resistance
- Bright red color for high visibility and safety compliance
- Accommodates multiple padlocks for group lockout situations
- Suitable for large blind flanges up to 25.4 cm (10 inches) diameter
- Easy-to-use design for quick installation and removal
Professional Installation Requirements
- Installation should be performed by trained personnel following site lockout/tagout procedures.
Applications
- Industrial plants: Isolating pipelines during maintenance
- Oil & gas facilities: Securing blind flanges to prevent accidental operation
- Chemical processing: Locking out hazardous energy sources
- Water treatment plants: Ensuring safe maintenance procedures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable design reduces single-use plastic waste
- Prevents hazardous leaks and spills during maintenance
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec Large Blind Flange Lockout CIRFLD-3 is available for immediate purchase. Ideal for industrial, oil & gas, and chemical processing applications requiring secure flange isolation.
