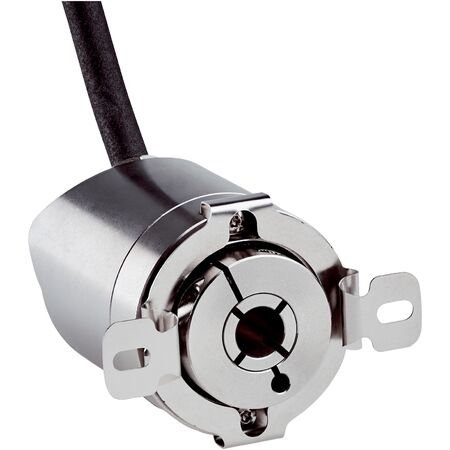

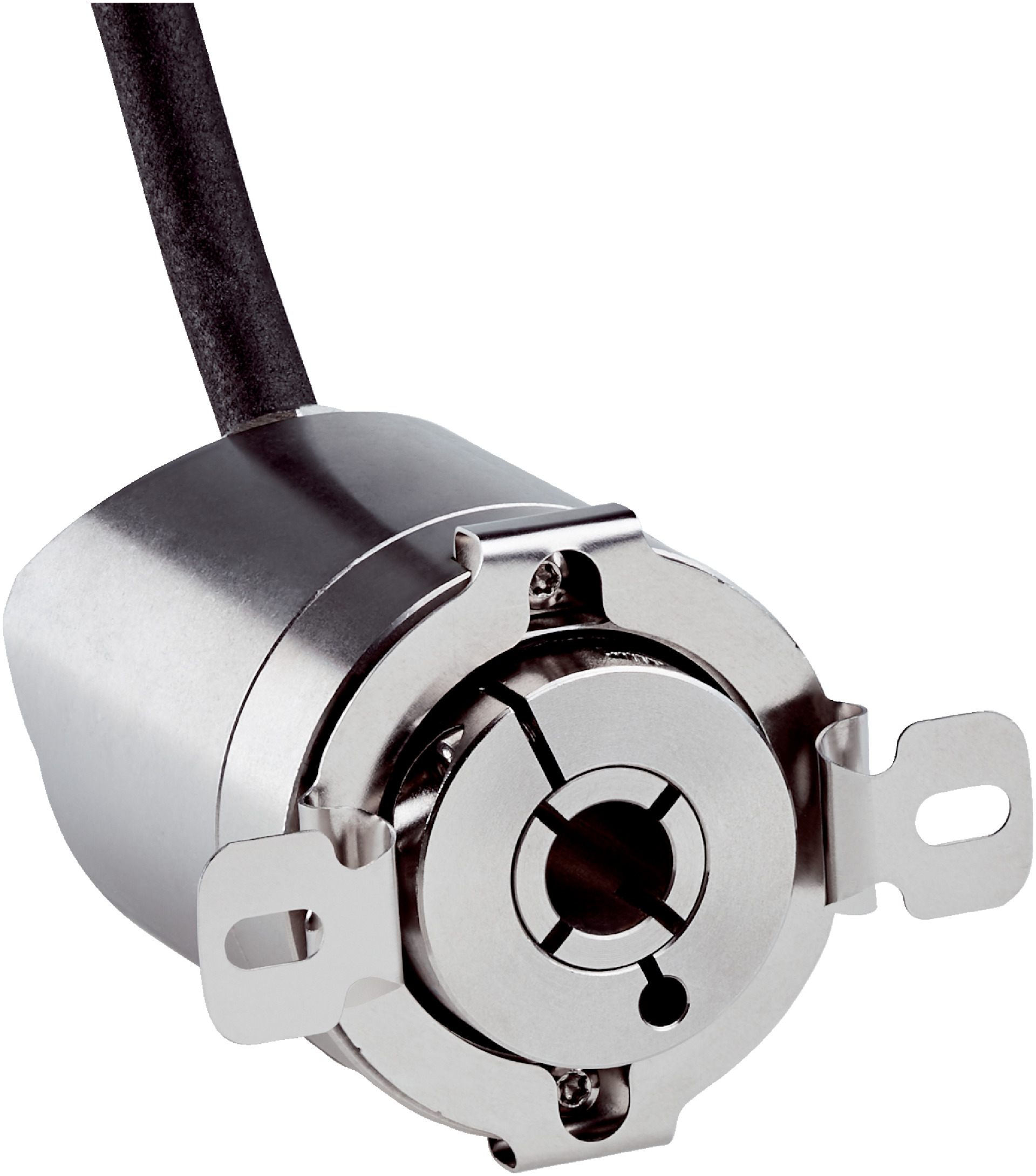

Blind Hollow Shaft Encoder | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Blind Hollow Shaft Encoder offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With an IO-Link V1.1 communication interface and robust stainless steel construction, this encoder ensures reliable performance in harsh environments. Perfect for applications requiring precise position and speed measurement, it features low power consumption and fast initialization for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed, errors and warnings
- Connection type: Cable, 4-wire, universal, 0.5 m
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft with 8 mm diameter shaft
- Materials: Stainless steel 1.4305 for shaft, flange, stator coupling, and housing
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback
- Packaging and material handling equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BBQJ016384 IO-Link Blind Hollow Shaft Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
