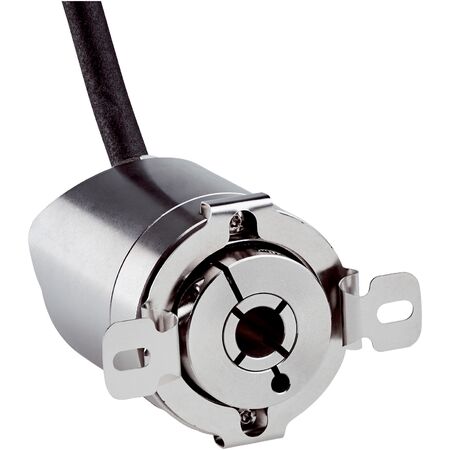

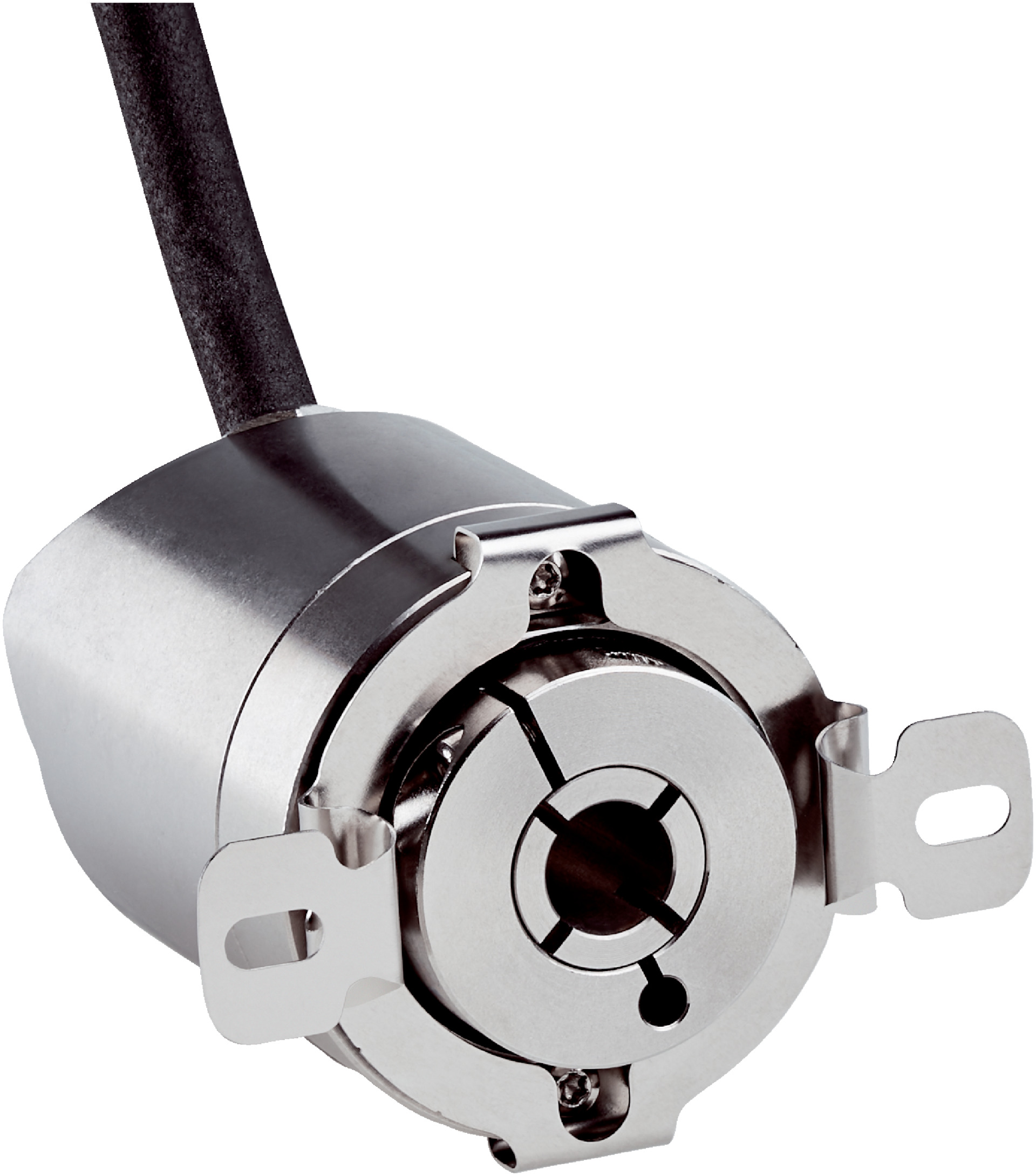

Blind Hollow Shaft Encoder | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Blind Hollow Shaft Encoder offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and motion control applications. Featuring a robust stainless steel design and an IP67/IP69K rating, this encoder ensures reliable performance in harsh environments. With an IO-Link V1.1 communication interface, it provides extensive diagnostic capabilities, making it perfect for robotics and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed
- Connection type: 4-wire cable, 0.5 m length
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection included
- Mechanical design: Blind hollow shaft with 10 mm diameter
- Shaft and housing material: Stainless steel 1.4305
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Low start-up and operating torque (≤ 1 Ncm)
- Wide operating temperature range from –40 °C to +85 °C
- Extensive diagnostic and status information via IO-Link
- High mechanical reliability with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Packaging and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BDQJ016384 IO-Link Blind Hollow Shaft Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
