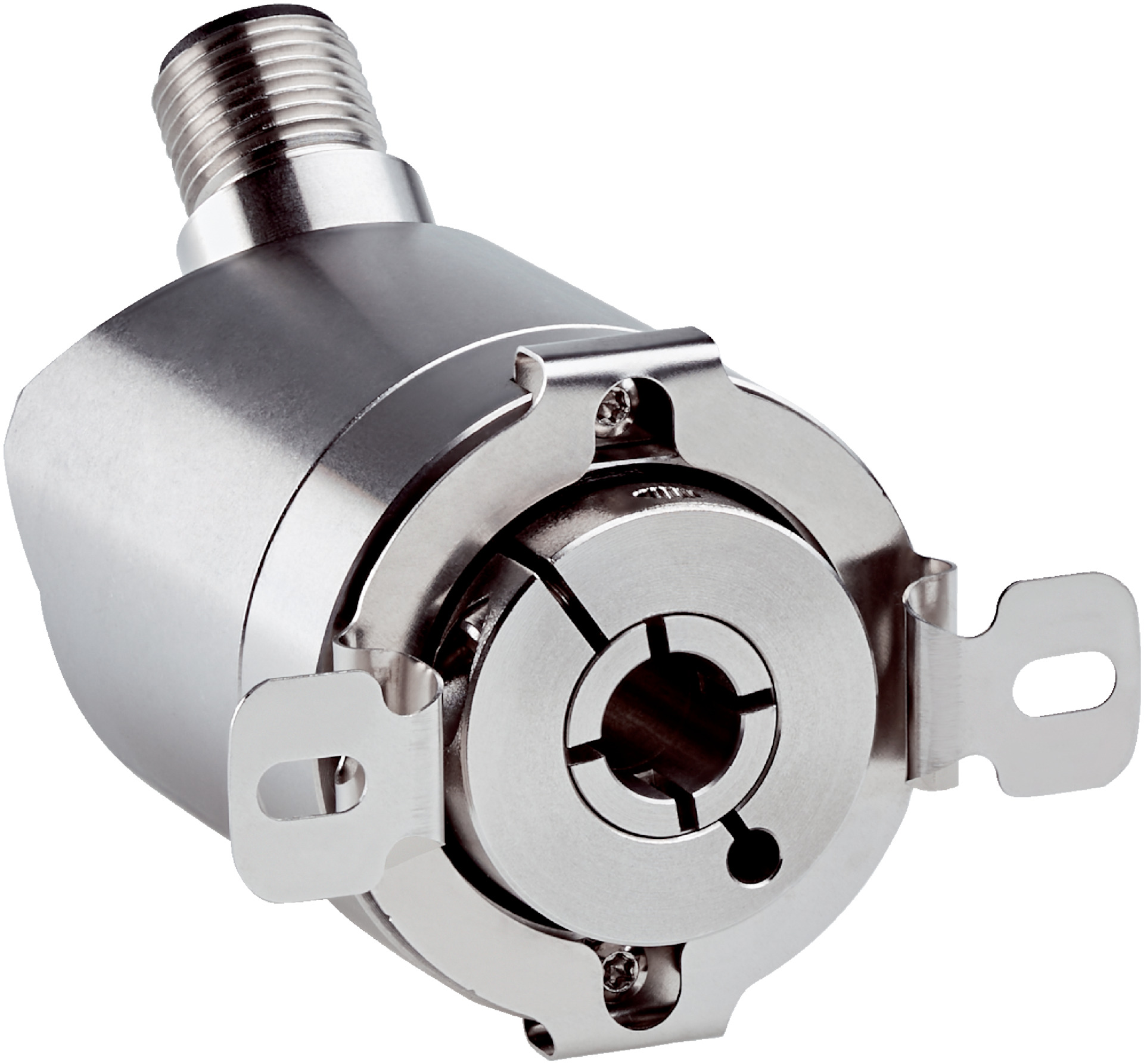

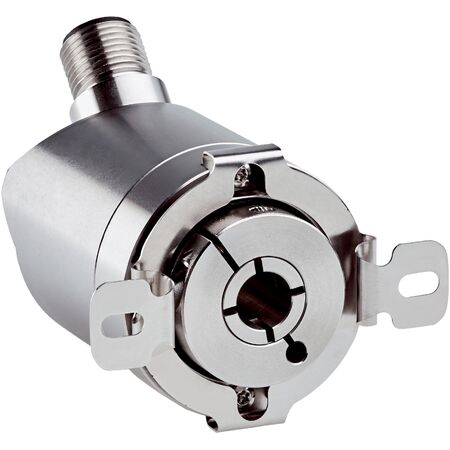

Blind Hollow Shaft Encoder | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Blind Hollow Shaft Encoder is designed for industrial automation, featuring a high resolution of 16,384 steps per revolution and an IO-Link V1.1 communication interface. With robust stainless steel construction and IP67/IP69K ratings, it excels in harsh environments, making it ideal for precise position and speed measurement in robotics and machine tool feedback systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed, errors and warnings
- Connection type: Male connector, M12, 4-pin
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 10 mm diameter
- Shaft and housing material: Stainless steel 1.4305
- Start-up and operating torque: ≤ 1 Ncm
- Permissible static movement: ± 0.3 mm radial and axial
- Permissible dynamic movement: ± 0.1 mm radial and axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Low start-up and operating torque (≤ 1 Ncm)
- Wide operating temperature range from –40 °C to +85 °C
- Comprehensive diagnostics and status information via IO-Link
- Reverse polarity protection and low power consumption (≤ 1.5 W)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Robotics and motion control
- Process control requiring high resolution and reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BDQC016384 IO-Link Blind Hollow Shaft Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
