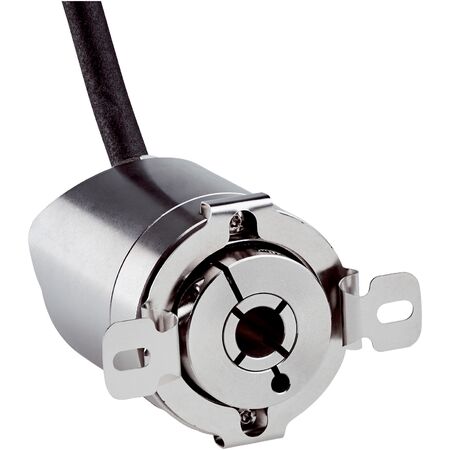

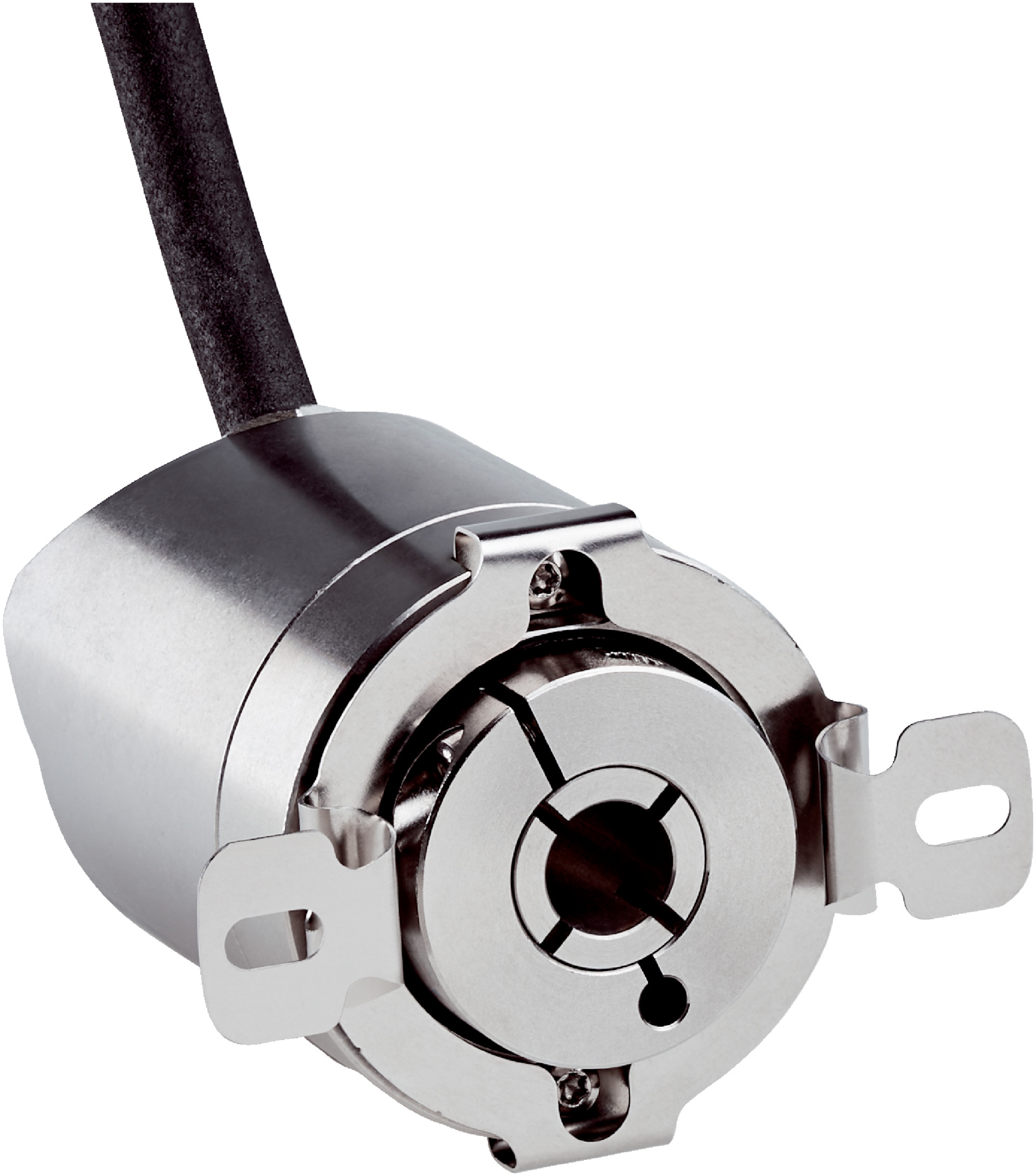

Blind Hollow Shaft Encoder | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Blind Hollow Shaft Encoder is designed for industrial automation, offering high resolution with 16,384 steps per revolution and an IO-Link V1.1 communication interface. Ideal for precise position and speed measurement in robotics and machine tool feedback systems, this encoder features robust stainless steel construction and operates in extreme temperatures from -40 °C to +85 °C, ensuring reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed, errors and warnings
- Connection type: 4-wire cable, 1.5 m length
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 6 mm diameter and front clamp
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low start-up and operating torque (≤ 1 Ncm)
- High mechanical reliability with bearing lifetime of 2.0 x 10^9 revolutions
- Smart sensor features including enhanced sensing and diagnostics
- Reverse polarity protection and low power consumption (≤ 1.5 W)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Robotics and motion control
- Process control requiring high resolution and reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BAQK014x12 IO-Link Blind Hollow Shaft Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
